Vector superhero tutorial

When you’re starting to work in digital media, some things are a little bit difficult to translate for the analogical style to the vectorial and bitmap fields. Usually doing things like smooth gradients, using the pen’s hardness to define volume and more manual techniques are difficult to adapt at first to the graphic interfaces of programs such as Illustrator and Photoshop. Today we are about to take a lesson like the ones you took when you were at design school, you’re going to learn how to create the basic character design for an illustration.

1. Set up your workspace

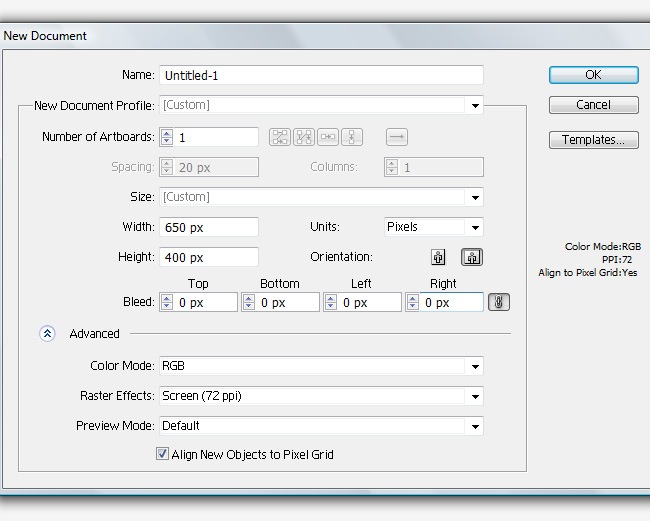

The first thing you need to do is go to File>new and setup your canvas, we defined a 650 X 400 px document and color mode set to RGB while resolution has been adjusted to 72 dpi, these last two are specifically design for working on digital designs (not going to be printed).

characterh01

2. Starting to work

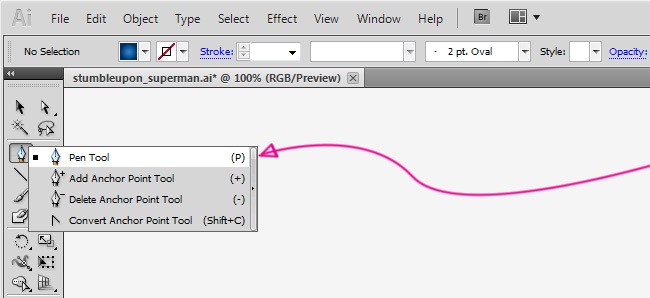

OK, the first thing we need to do is the trunk, select the pen tool to draw the basic body shape.

characterh02

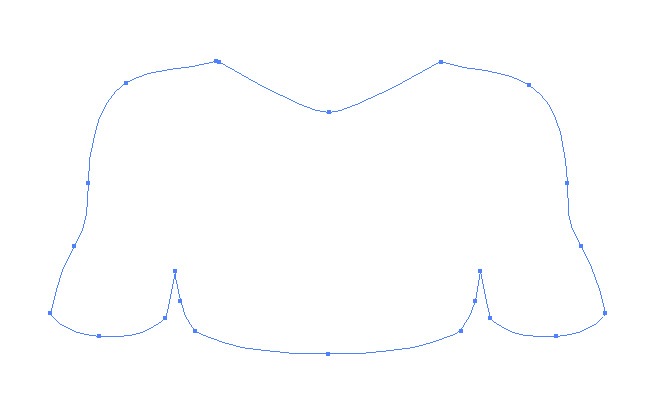

And with the basic shape you can determine if our character is going to be slim, fat or standard.

characterh03

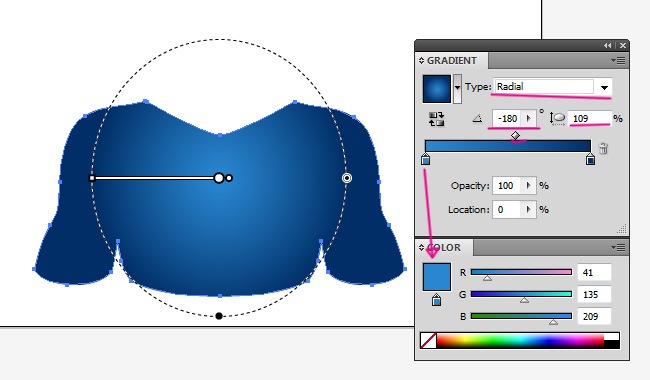

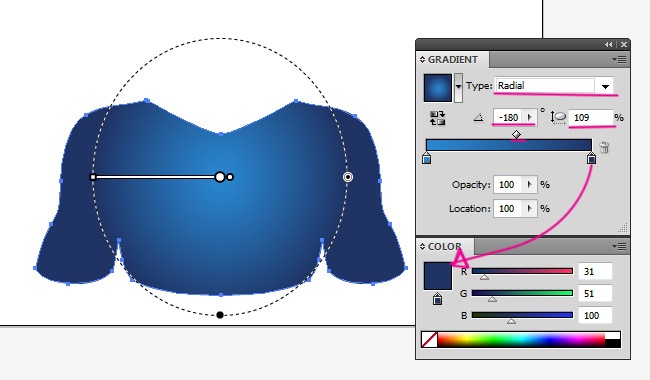

And we can fill it with any color we want, remember that we’re doing a generic character. We decided to use a blue gradient on this case.

characterh04

characterh05

And now we proceed by making the muscles, which are going to be created individually.

characterh02

characterh06

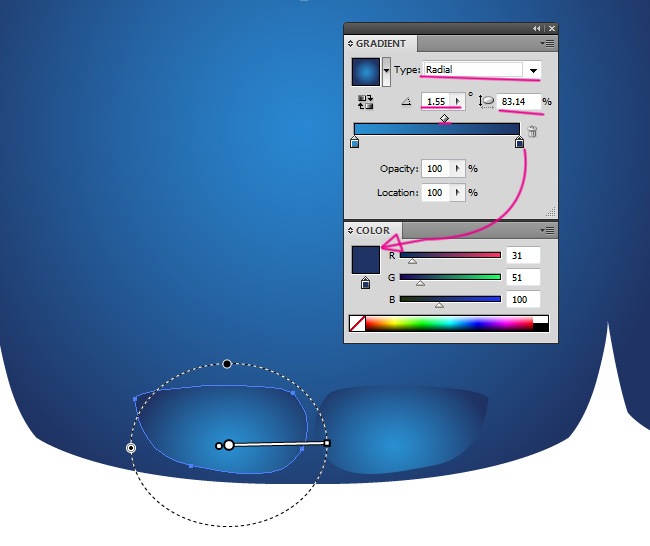

Radial gradients can help generate volumes easily and using only two basic colors, remember that if you want to change the gradient’s position you can always hit the G letter in your keyboard.

characterh07

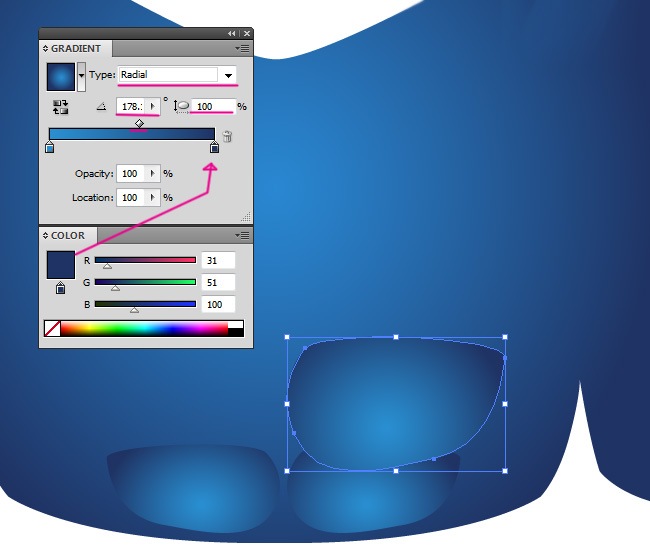

Now the next muscle, similar to the previous one.

characterh10

characterh09

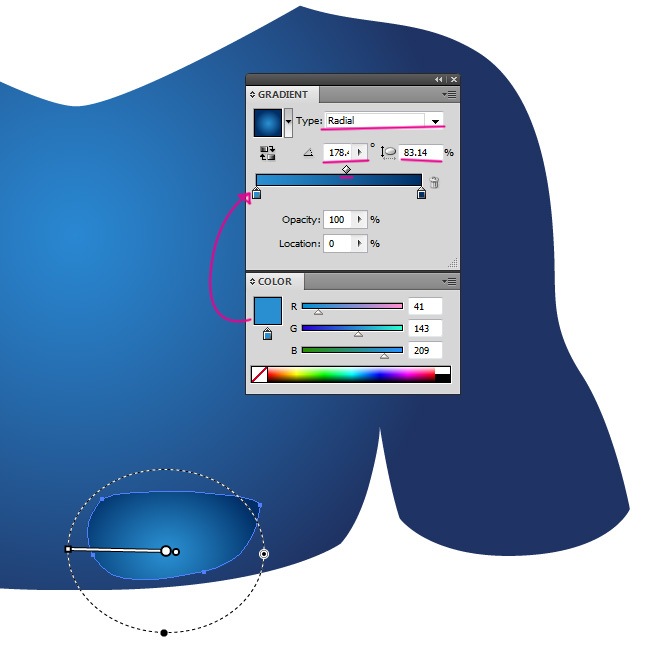

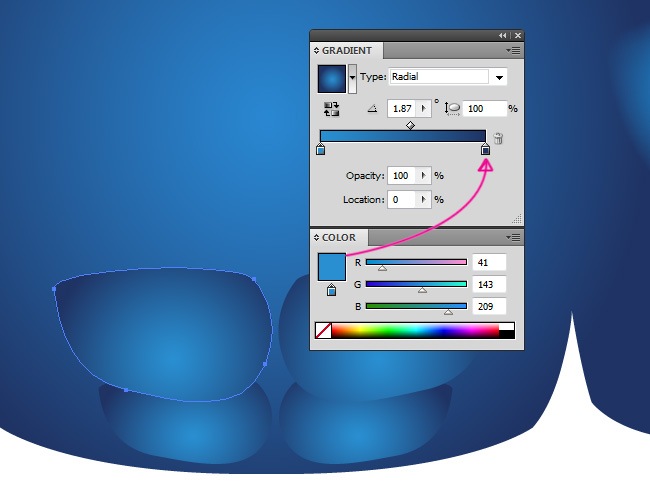

Continue with the next abdominal muscle, select your pen tool and draw it.

characterh02

characterh11

The gradient will remain the same across all the muscles, what will change are the angle and aspect radio values of each object.

characterh12

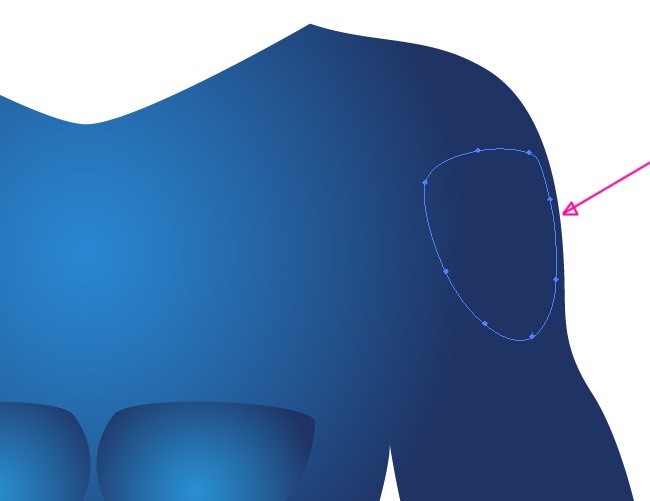

For the upcoming set of muscles (deltoid), we will make use of the mesh tool, which is an awesome way of working with volume, first of all draw the muscle’s shape with the pen tool.

characterh02

characterh13

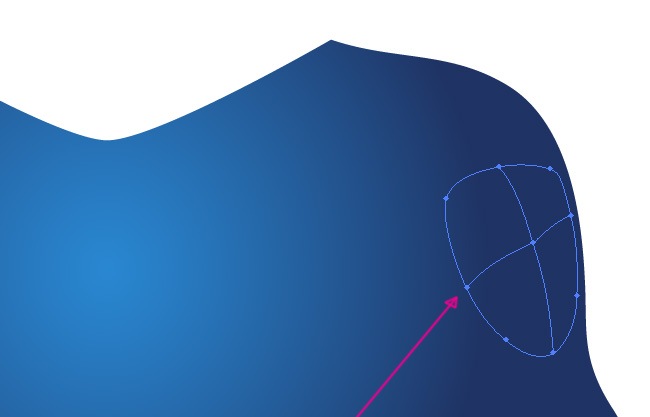

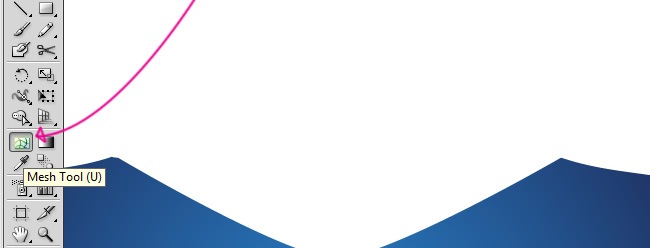

Now select the mesh tool and by clicking on the extremes make the following.

characterh14

characterh15

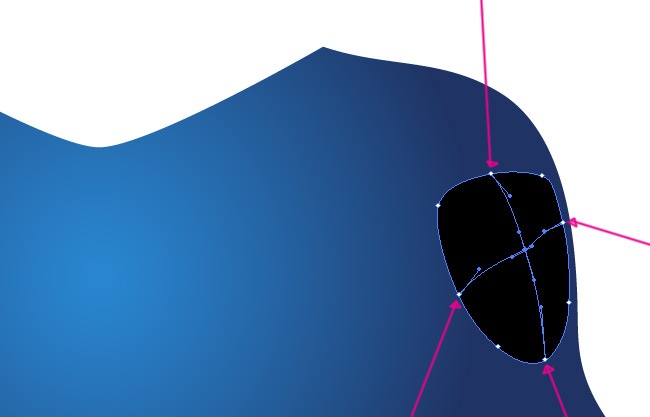

Using the Mesh tool click over each one of the handlers and give them a black fill.

characterh16

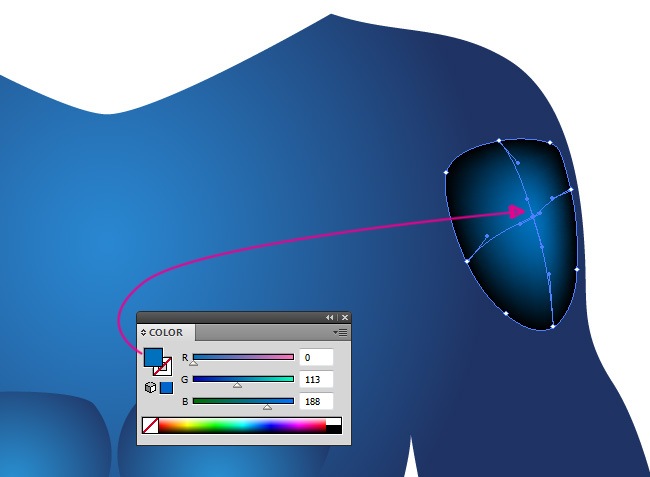

And now click over the middle handler and switch its filling for a blue tone.

characterh17

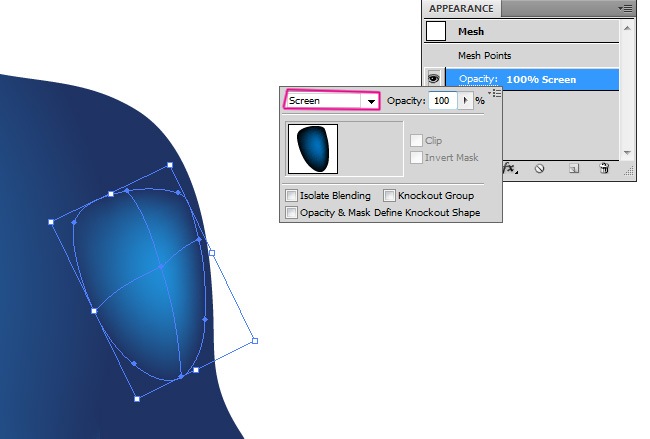

And finally switch the blending mode of the object to screen.

characterh18

Copy paste (Ctrl + C, Ctrl + F) the muscle and paste it on the left arm, you won’t need to repeat the whole mesh process.

characterh19

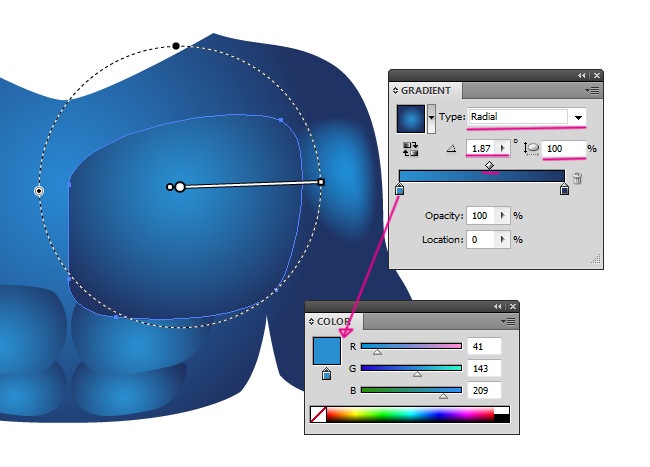

For the pectorals we will do the following:

characterh02

characterh20

And then copy paste it (Ctrl + C, Ctrl + F) so you can reflect it after that.

characterh21

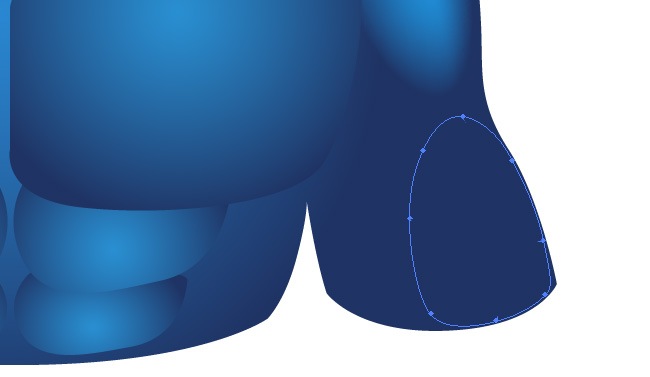

And now another mesh, just like before, take your pen tool and draw the initial shape.

characterh02

characterh22

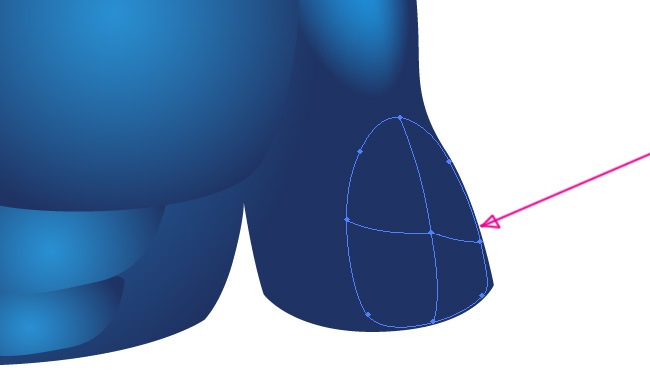

And once again, you need to make use of the mesh tool to develop the following structure:

characterh14

characterh23

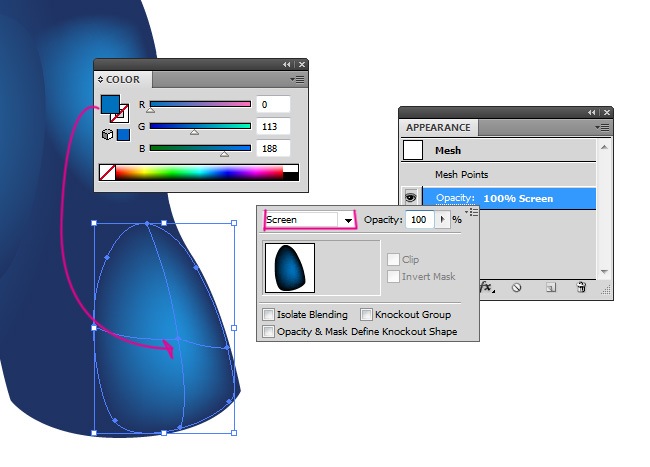

And from this point is exactly the same, black on the extreme handlers, blue in the middle and finally switch the blending mode to screen.

characterh24

Duplicate the muscle and you will be done with this part of our character’s body.

characterh25

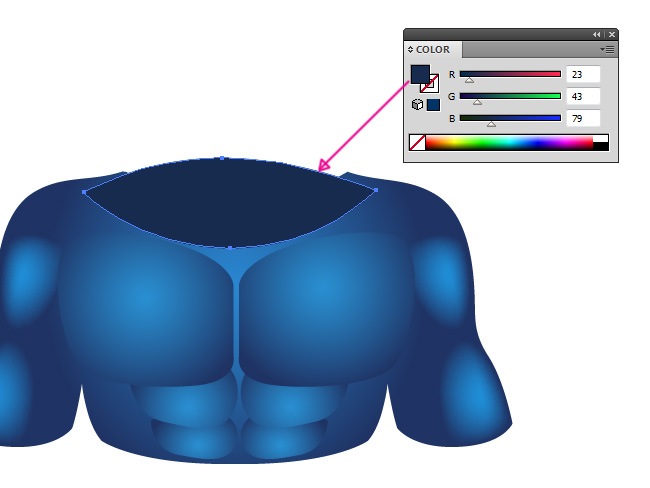

There’s no gradient on the next object, just a plain solid color.

characterh02

characterh26

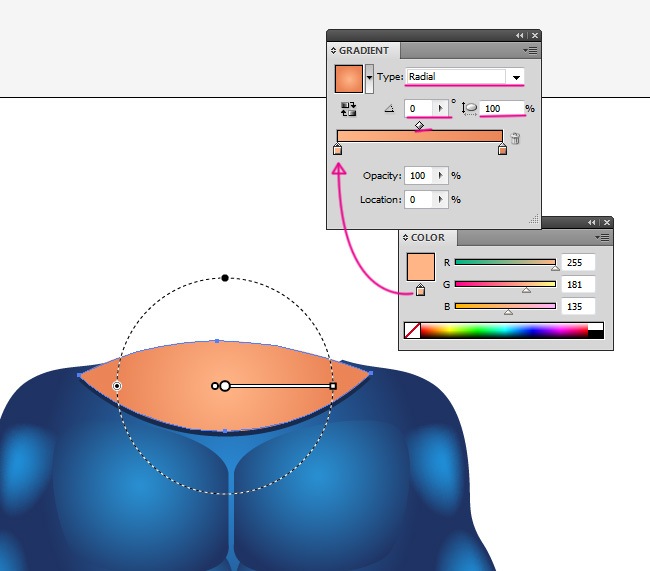

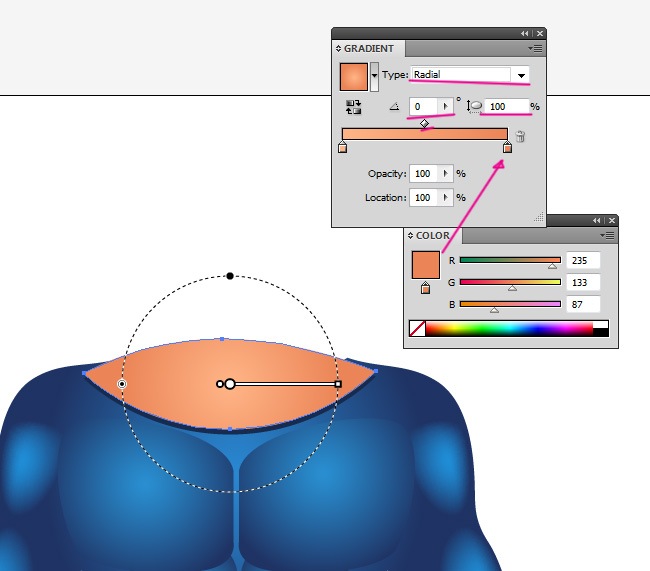

On top of that it goes the first revealing skin, draw it using your pen tool.

characterh02

characterh27

characterh28

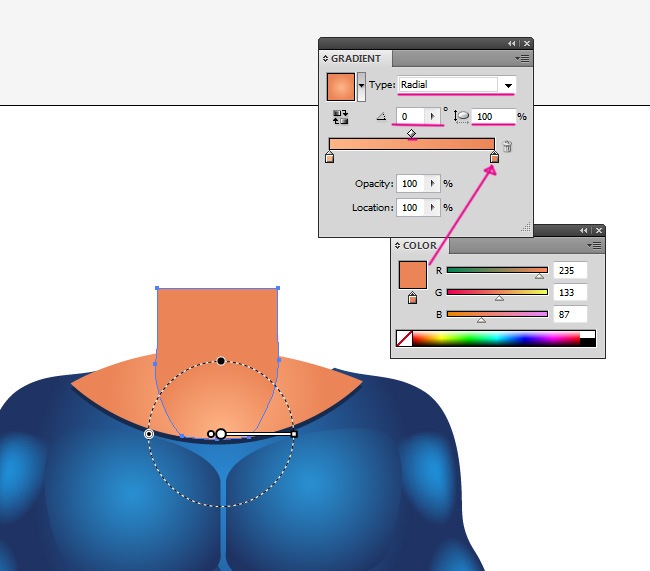

It’s time to go for the neck, so let’s make it.

characterh02

characterh29

characterh30

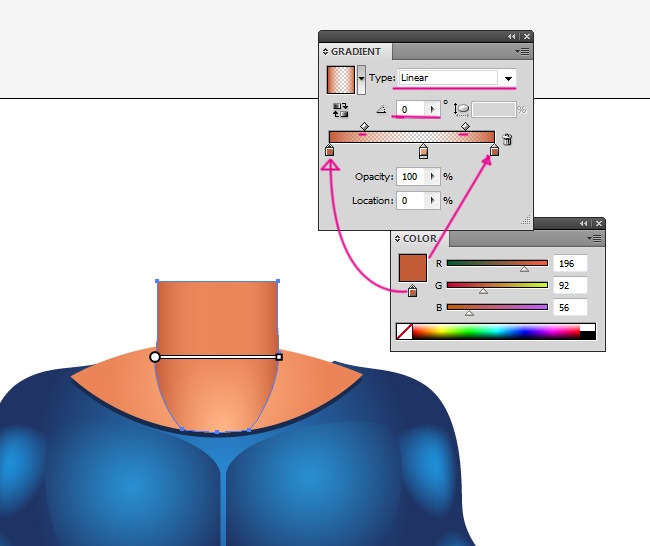

Additional color details come at next, copy paste the neck (Ctrl + C, Ctrl + F) and you will work directly with the duplicate.

characterh31

characterh32

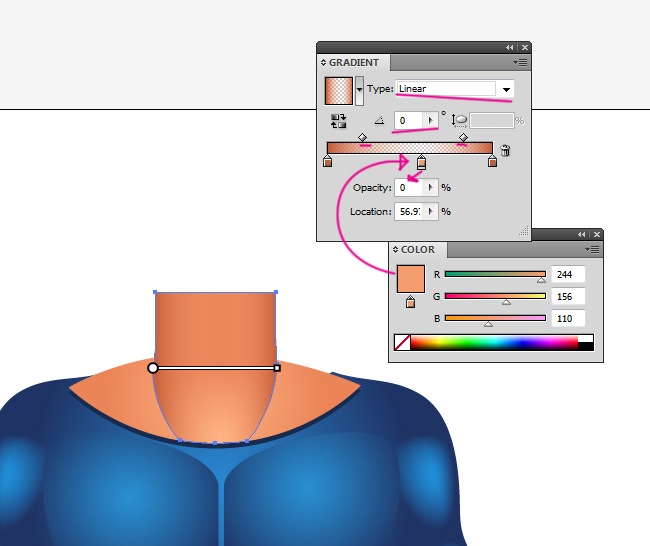

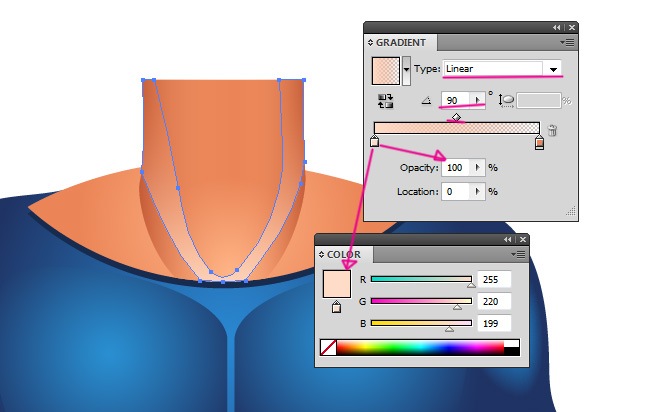

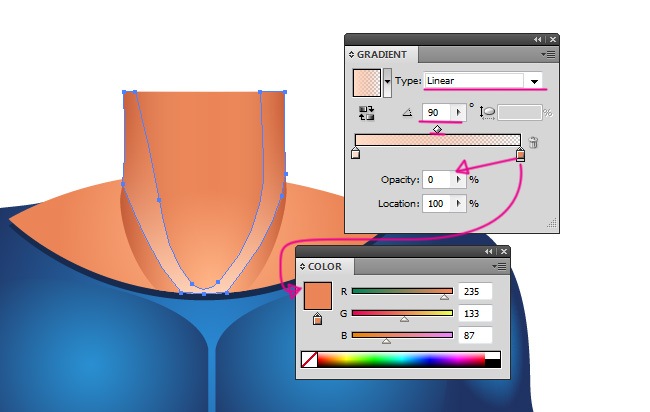

Usually when you see a person’s neck, you can notice the sternocleidomastoid, and our character won’t be the exception.

characterh02

characterh33

characterh34

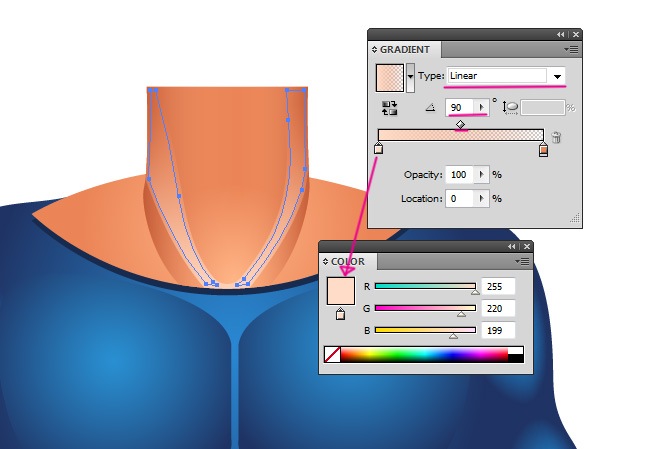

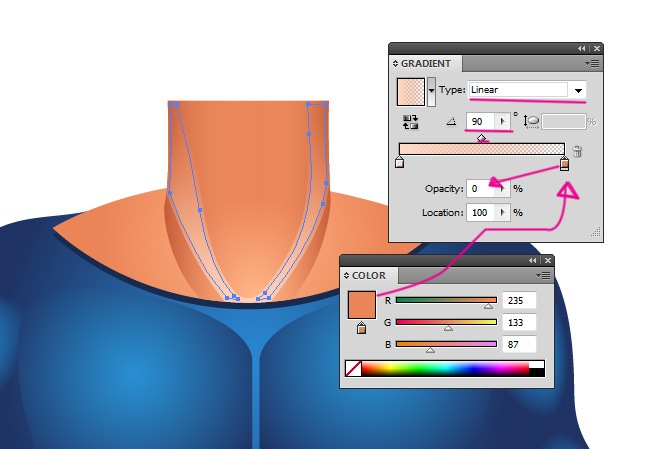

To add some texture, let’s add a similar shape inside this last one we did.

characterh02

characterh35

characterh36

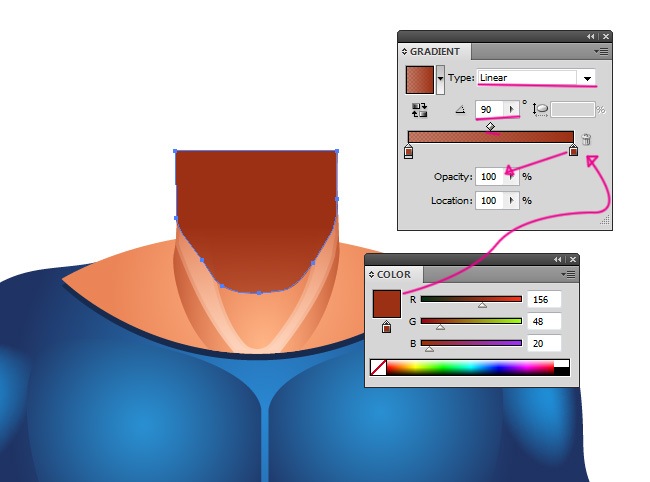

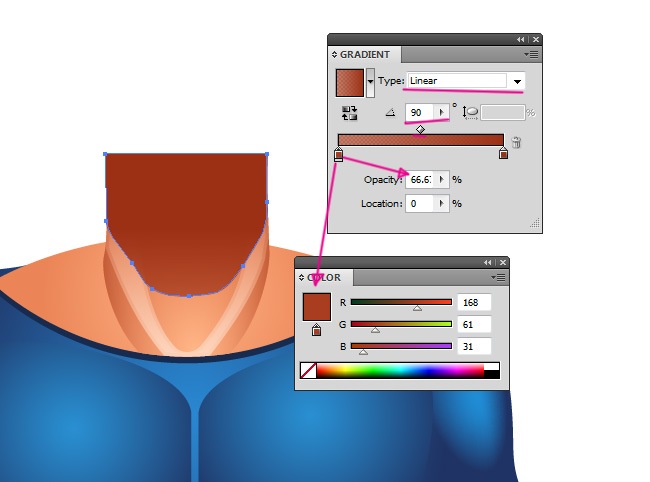

We can start insinuating the presence of our guy’s face.

characterh02

characterh37

characterh38

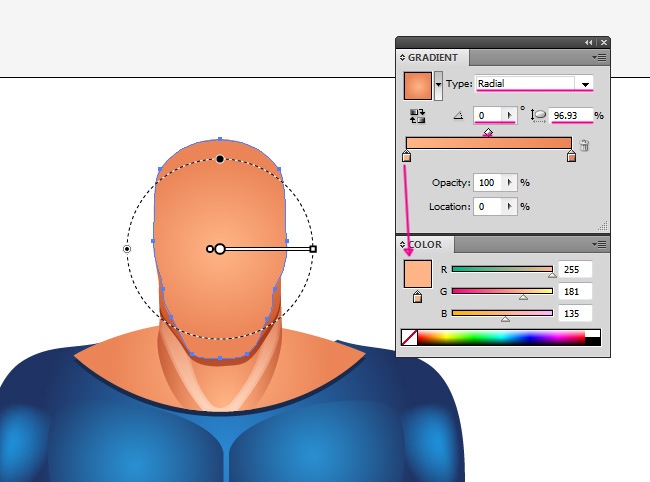

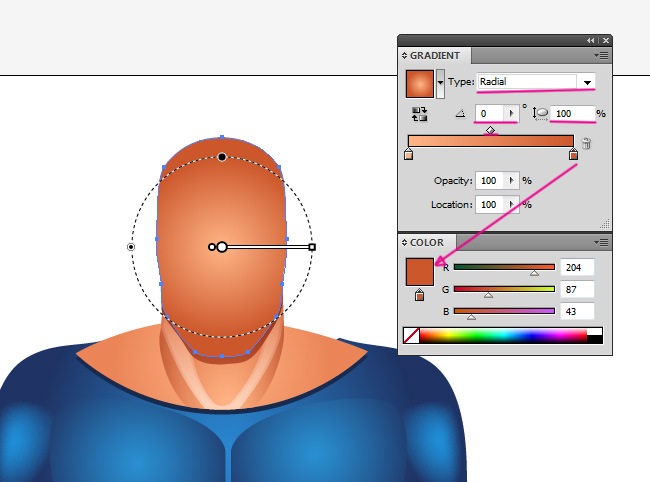

We can start with the face from this moment, it’s not difficult if you pay attention to each step of this tutorial.

characterh02

characterh39

characterh40

Keep adding shapes, you can achieve nice volumes by placing shape after shape and making a proper gradient management.

characterh02

characterh41

characterh42

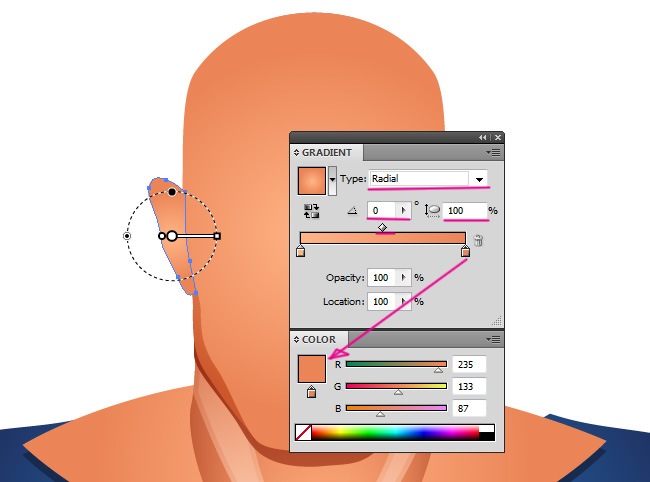

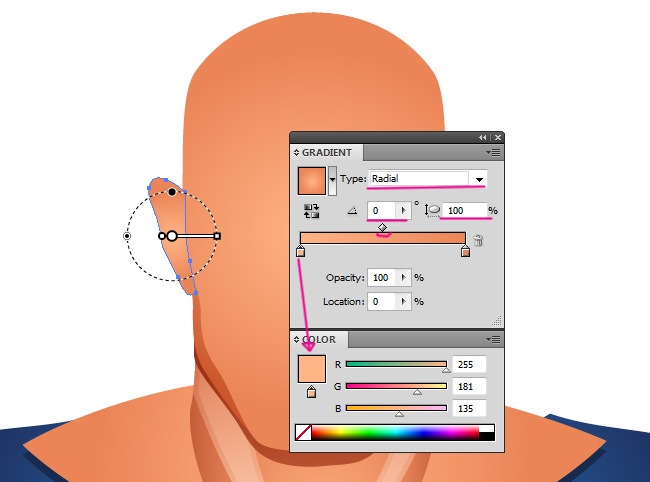

He can’t  hear anything, I think we should give our guy a couple of ears :).

characterh02

characterh43

characterh44

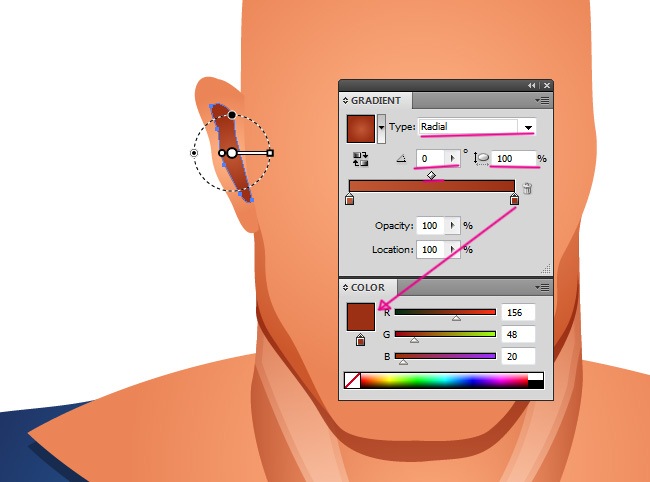

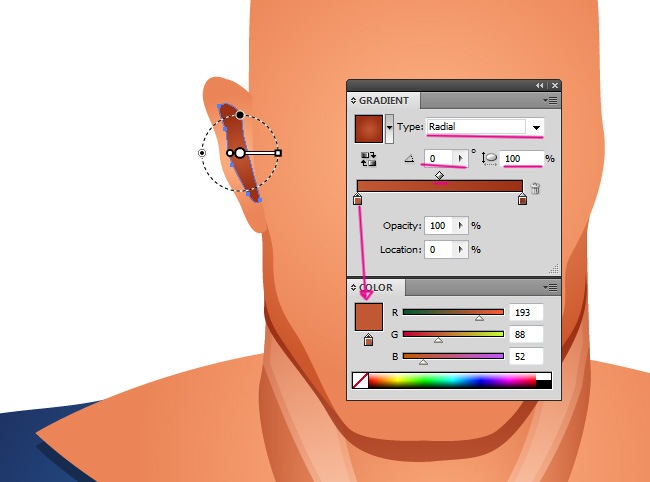

The inner part of the ear goes like this:

characterh02

characterh45

characterh46

Select the two last elements to duplicate the whole ear and then reflect it to save you from having to draw the second ear too.

characterh47

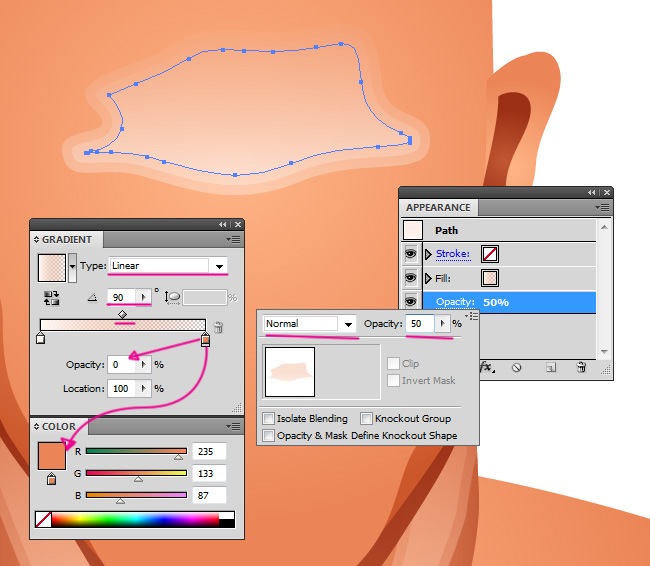

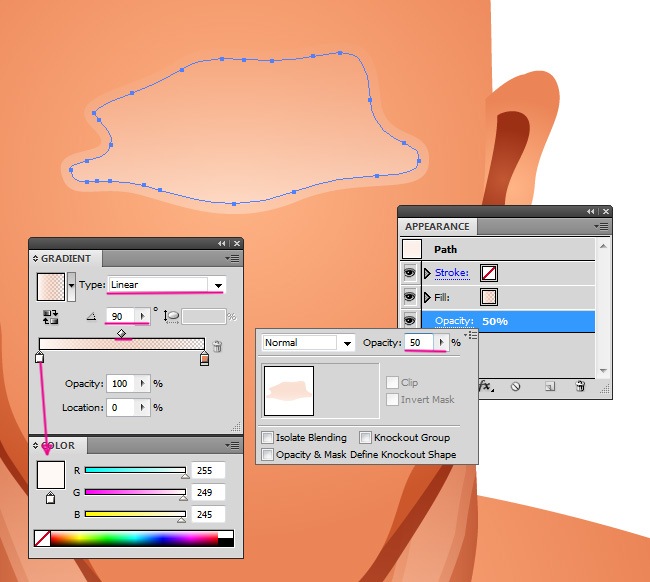

Time to add some highlights, on this case the chosen spot is going to be the forehead.

characterh02

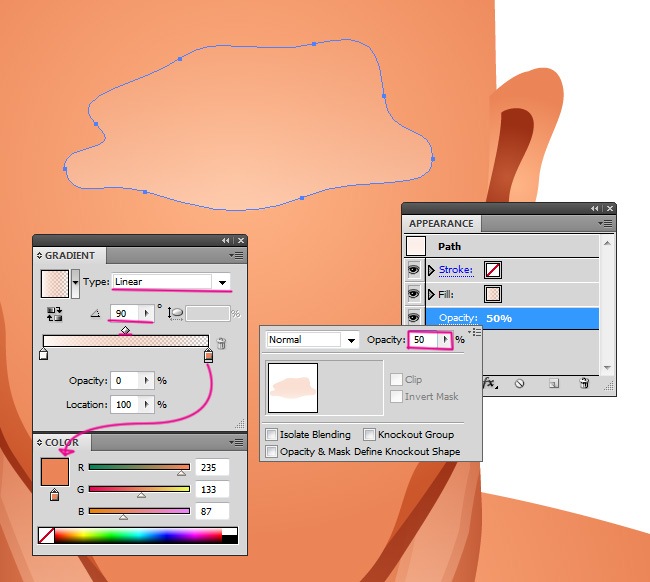

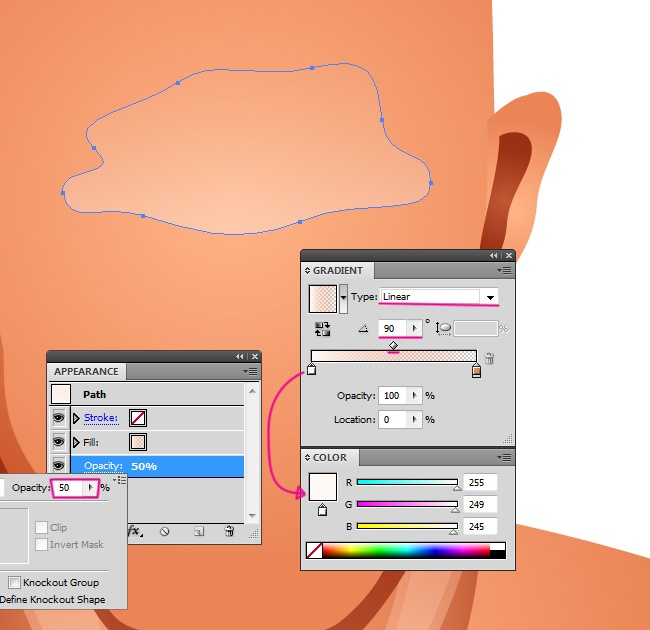

The first object has a reduced opacity of 50 %.

characterh48

characterh49

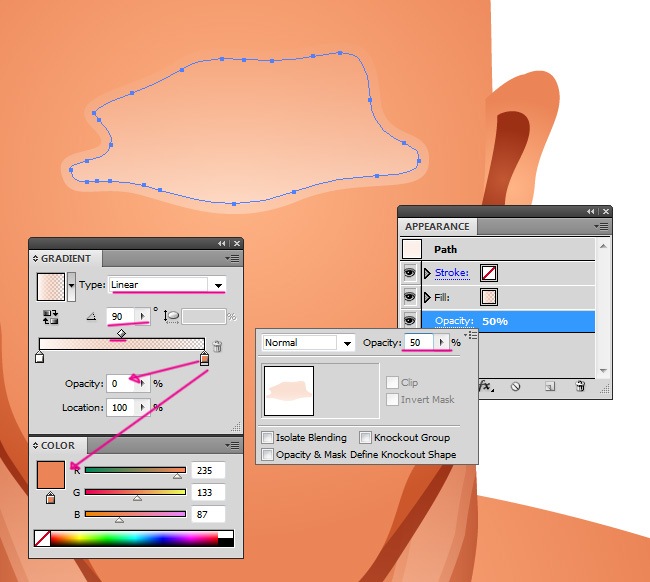

On top of this we draw a smaller object with the following properties:

characterh02

characterh50

characterh51

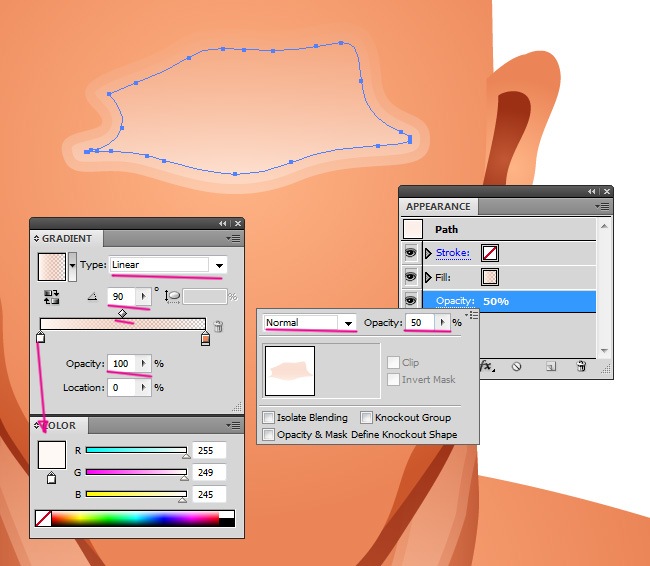

And the last object of this highlight goes like this:

characterh02

characterh52

characterh53

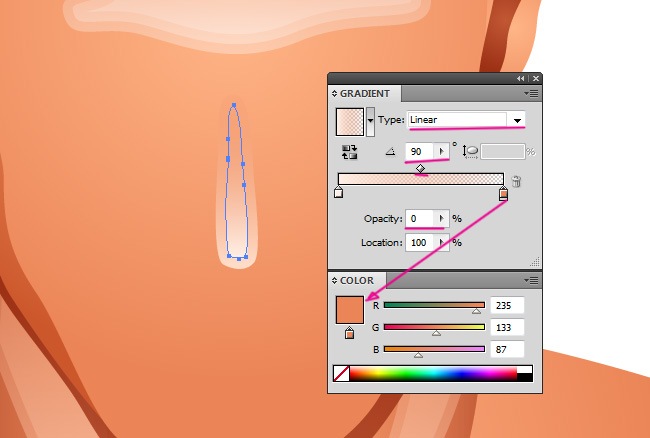

More highlights, this time we will be working with the nose.

characterh02

characterh54

characterh55

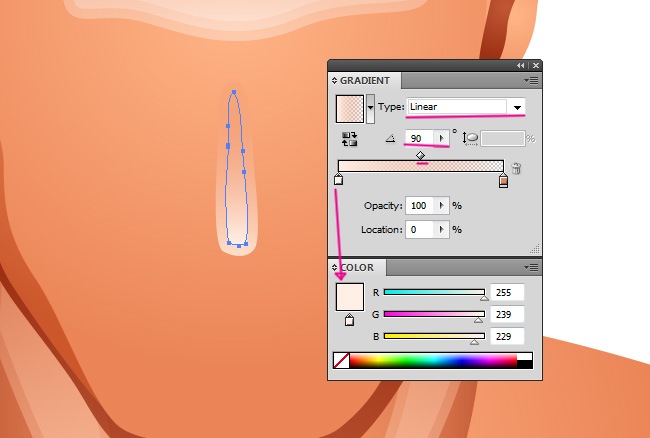

On top of this highlight we’re going to place another shape.

characterh02

characterh56

characterh57

More details, in any moment you will be surprise that the face is complete.

characterh02

characterh58

characterh59

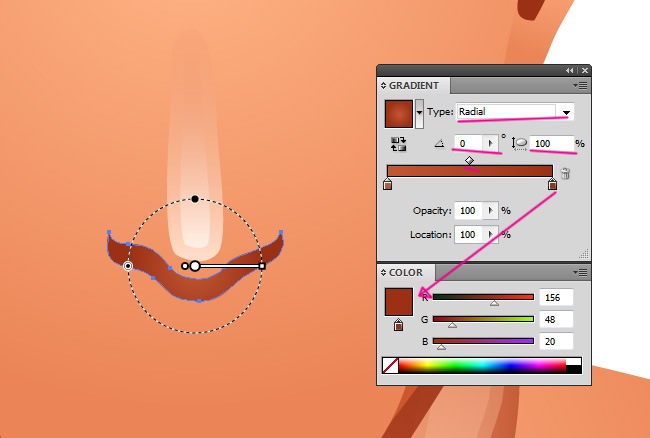

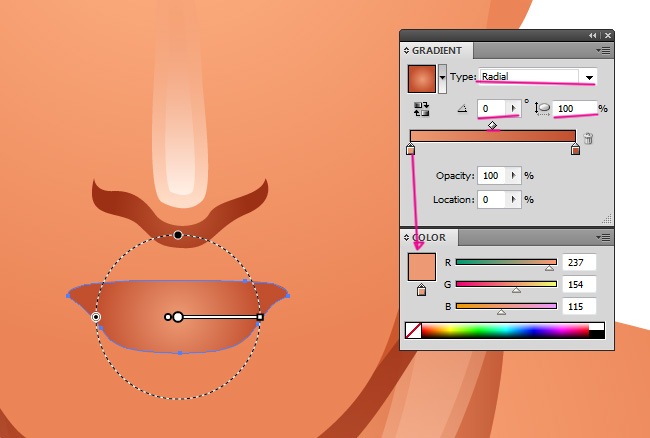

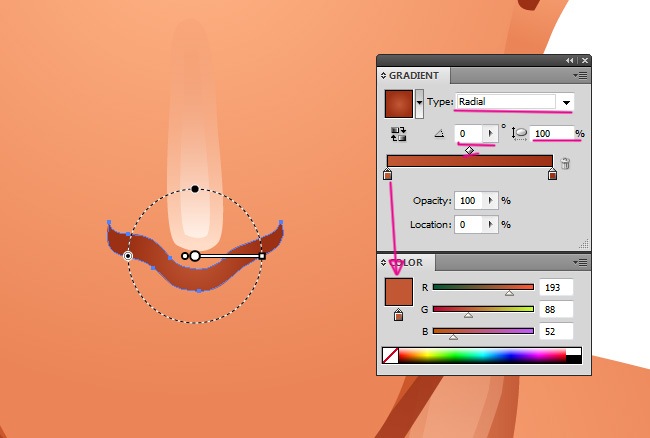

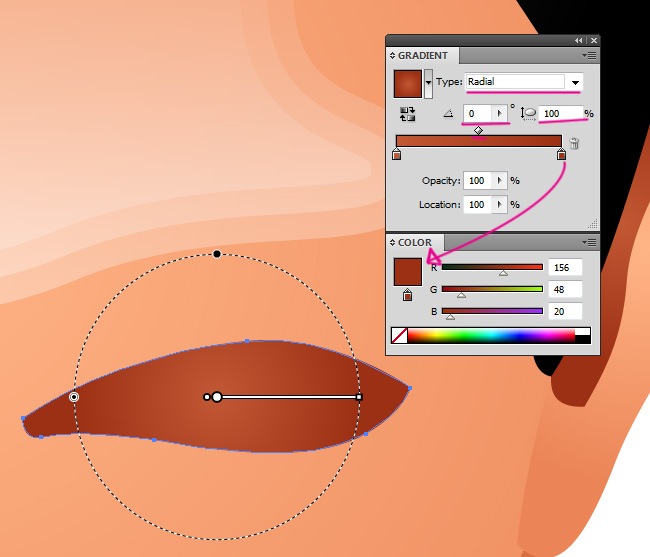

That was the nose, a couple of pixels down and we will be at the mouth’s location.

characterh02

characterh60

characterh61

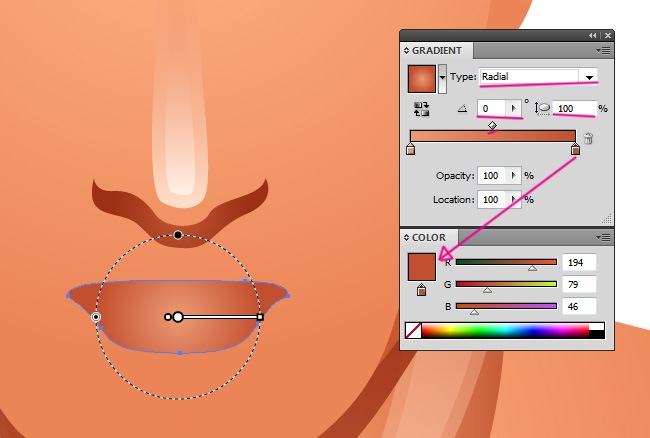

Proceed by adding details to our character’s mouth.

characterh02

characterh62

characterh63

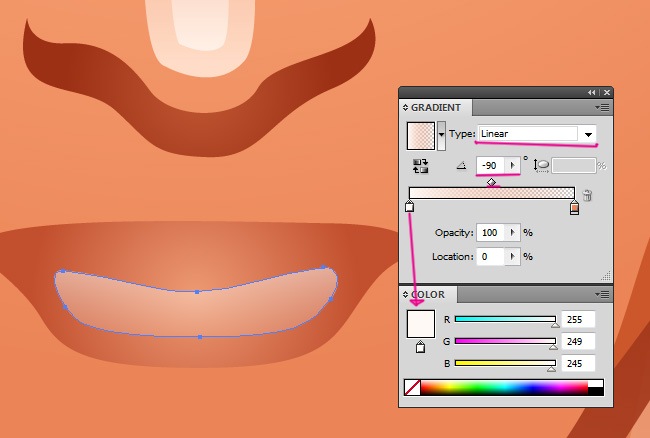

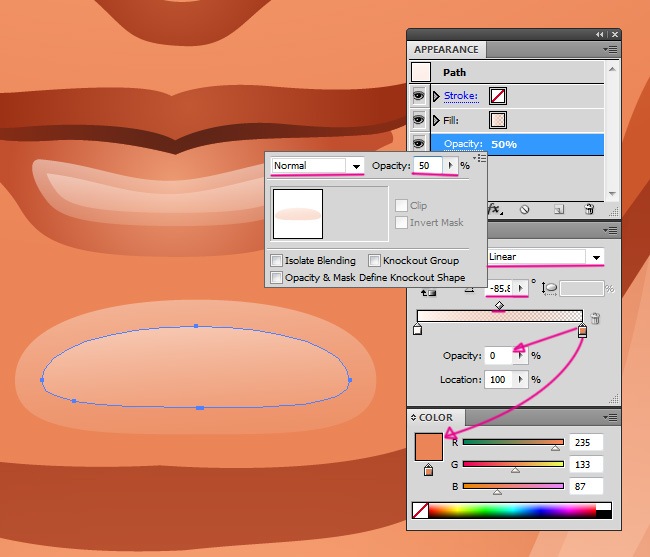

As usual, a smaller shape goes on top of the last one we did.

characterh02

characterh64

characterh65

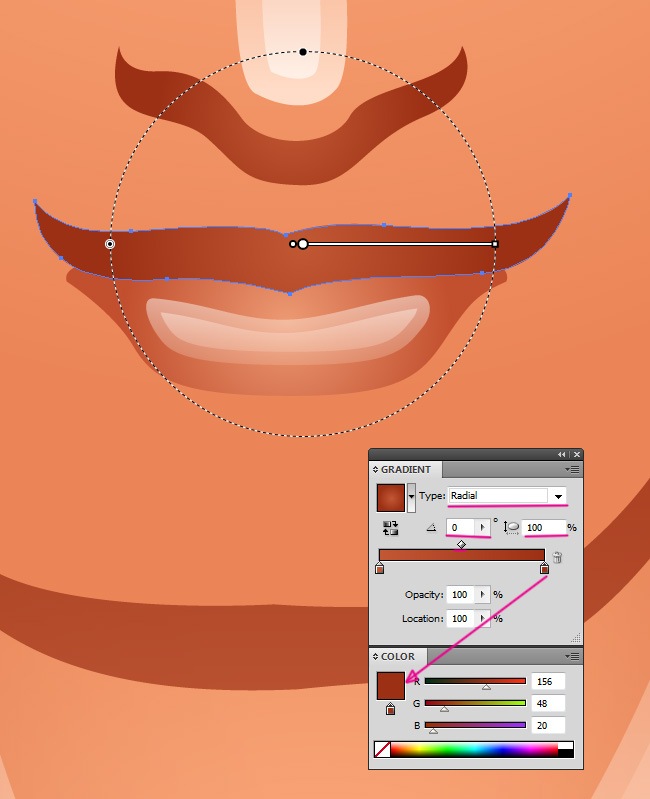

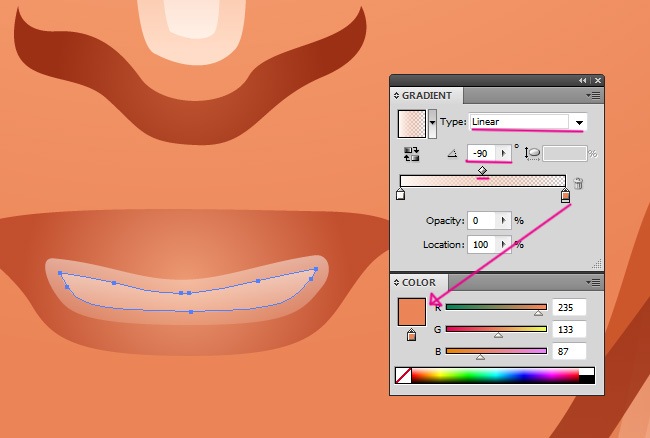

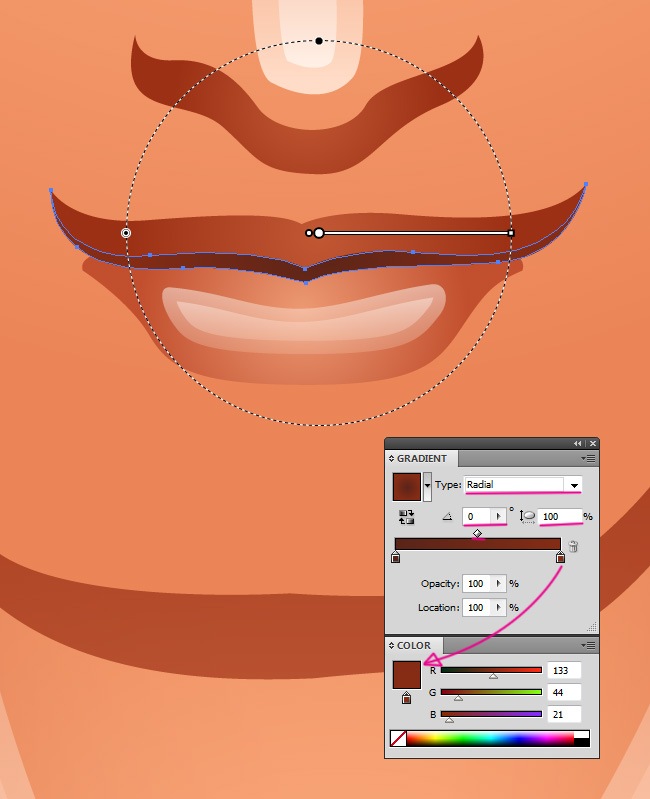

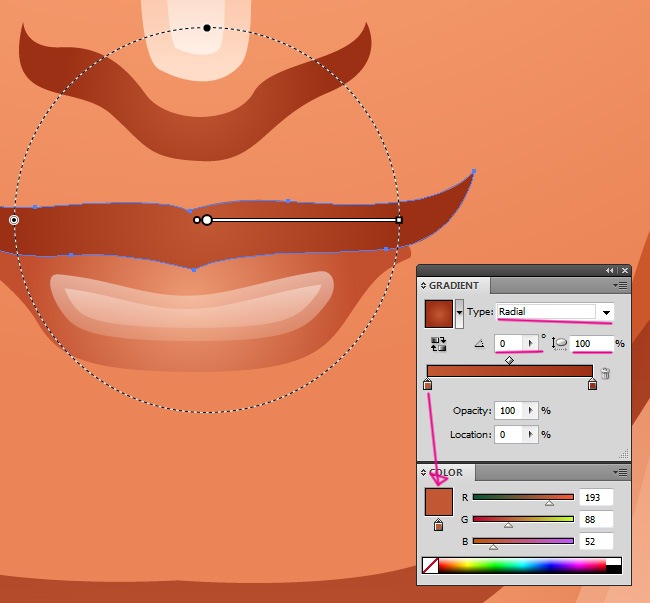

The lips are necessary to define every mouth’s contour, and that’s exactly what we will draw now.

characterh02

characterh66

characterh67

Don’t forget to save often your progress, you will not know when the light will go off or your Illustrator will stop working, let’s make the next shape.

characterh02

characterh68

characterh69

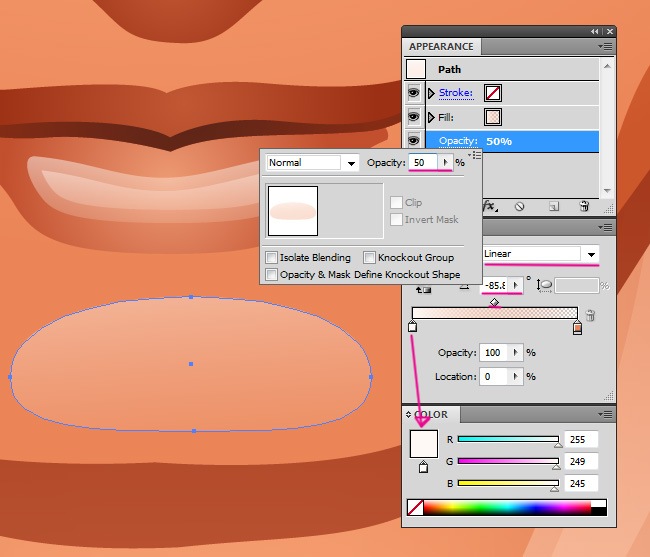

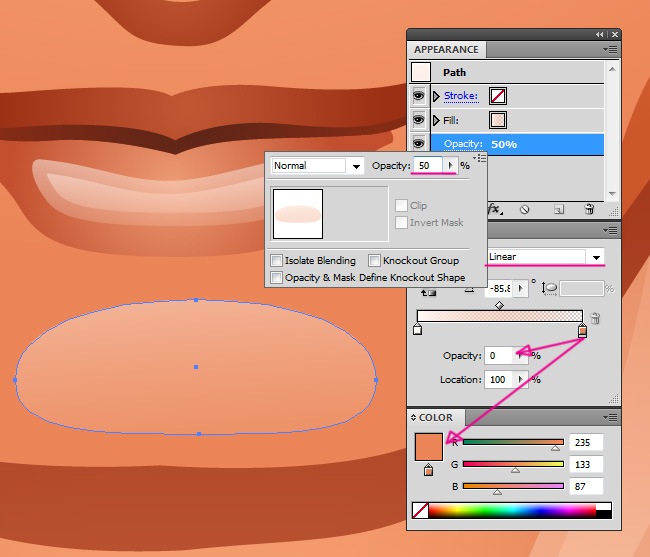

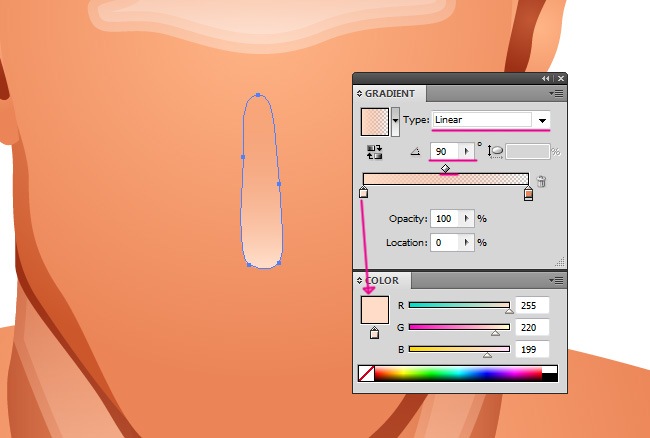

The chin’s highlight is also made out of 3 different elements, the first and larger one goes like this:

characterh02

characterh70

characterh71

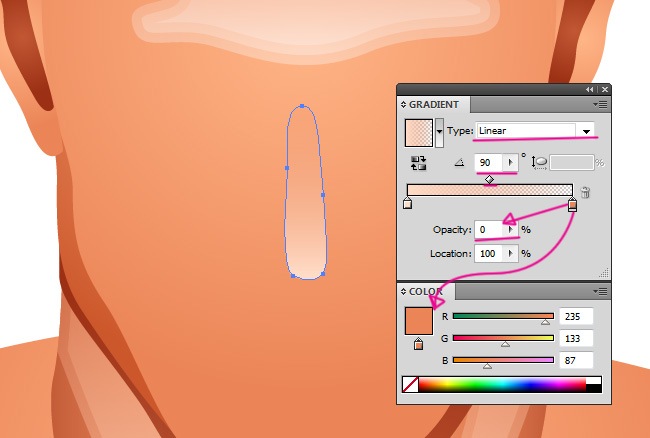

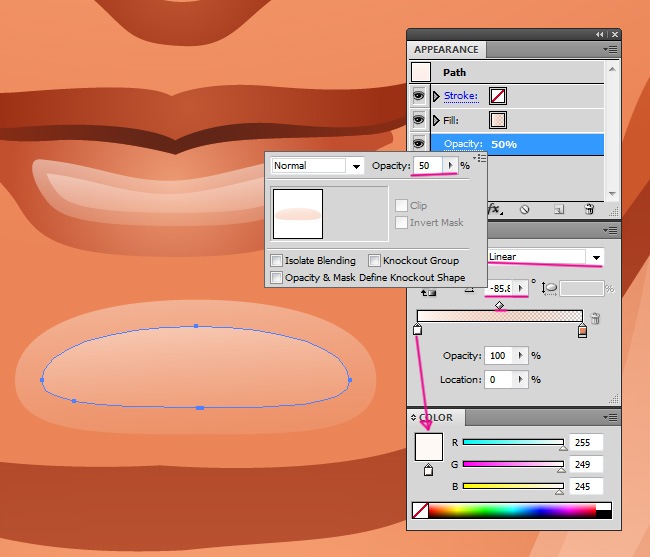

The middle highlight will have the following filling values:

characterh02

characterh72

characterh73

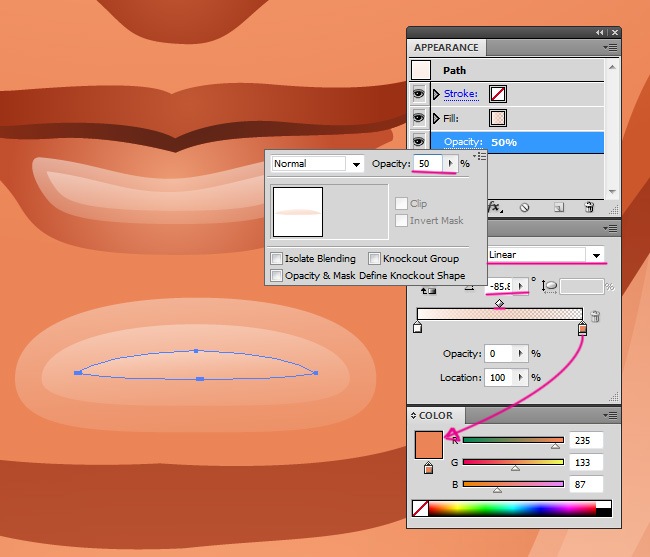

Finally the little highlight that goes on top of the other two.

characterh02

characterh74

characterh75

Our character is doing awesome this far, let’s zoom out and take a look and then we can proceed with the next element.

characterh76

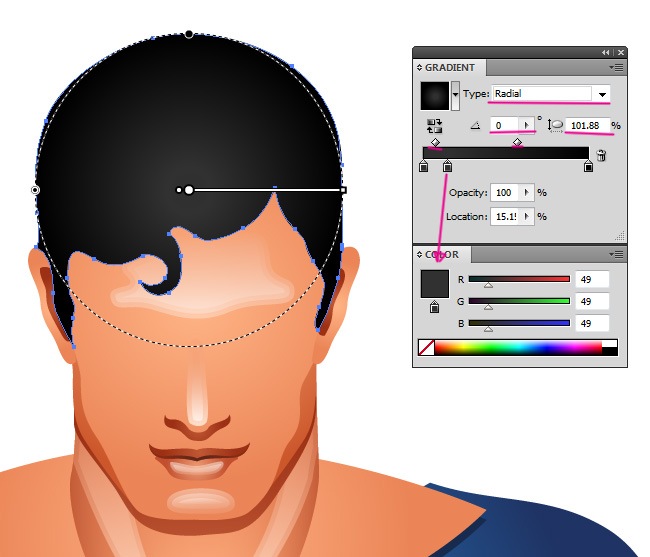

If you want him to be bald that’s fine, but we want to see him with hair.

characterh02

characterh77

characterh78

characterh79

You think that haircut is sexy?, well yeah but he can’t look himself at the mirror, he should have eyes.

characterh02

characterh80

characterh81

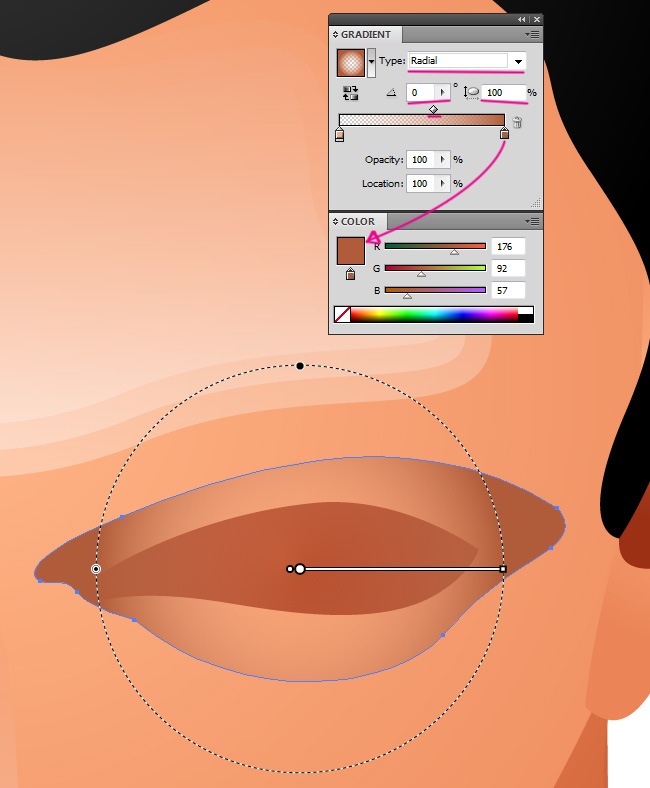

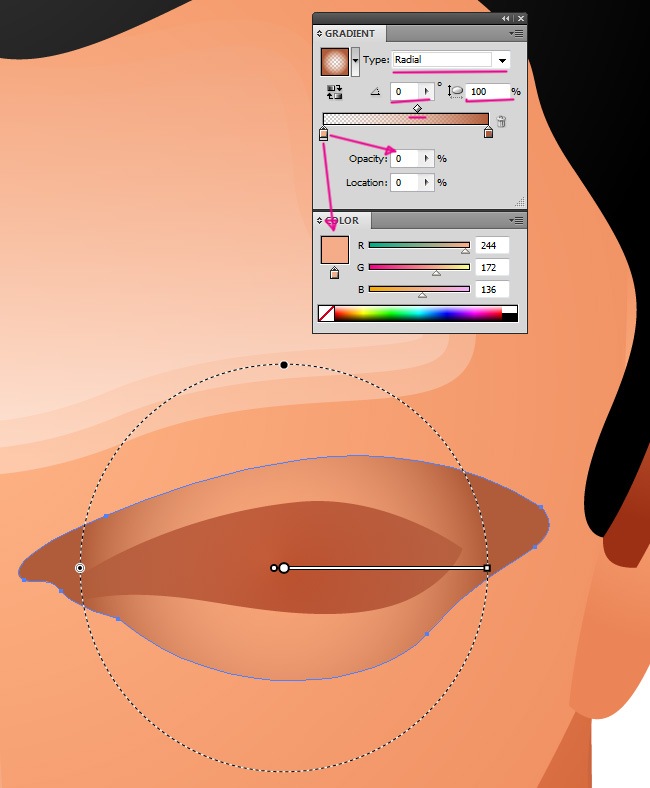

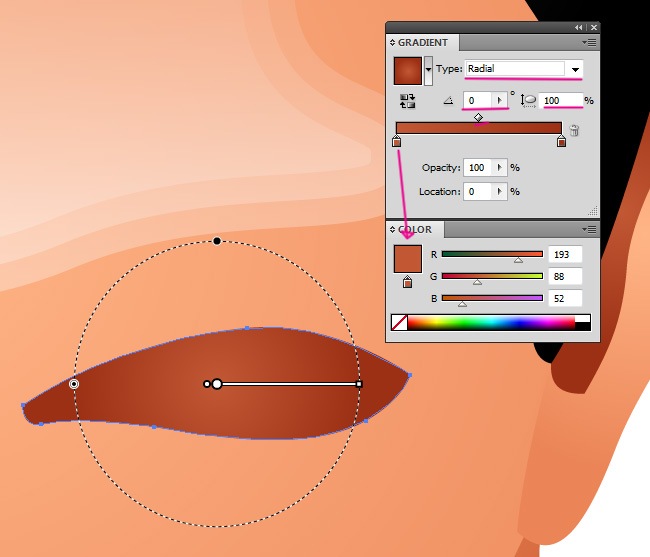

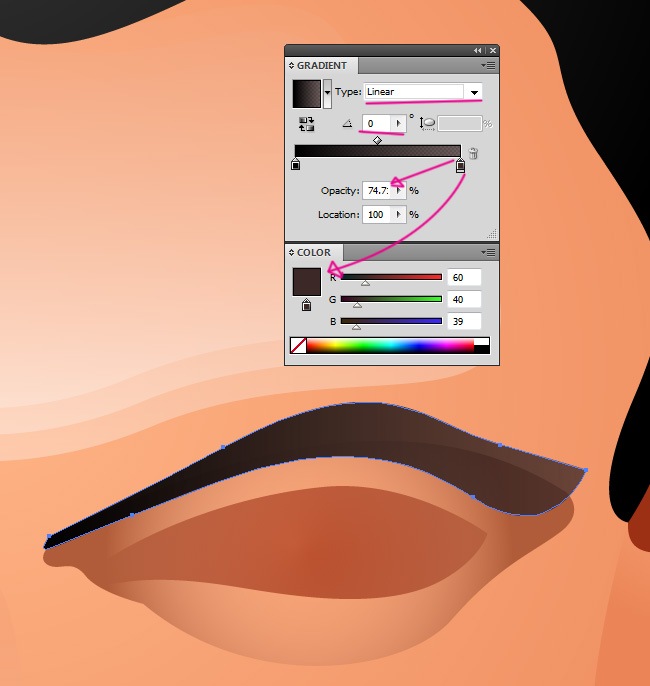

Making eyes is something that requires plenty of details and careful to achieve a truly expression and just a plain sketch.

characterh02

characterh82

characterh83

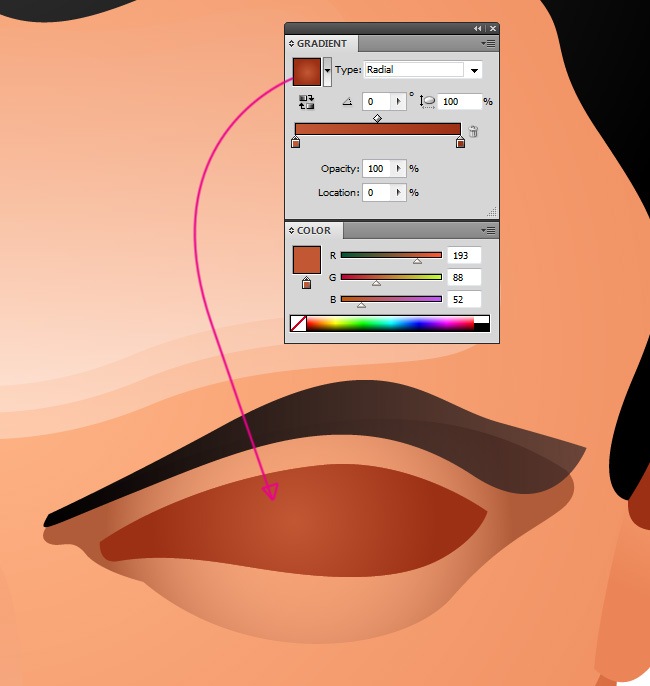

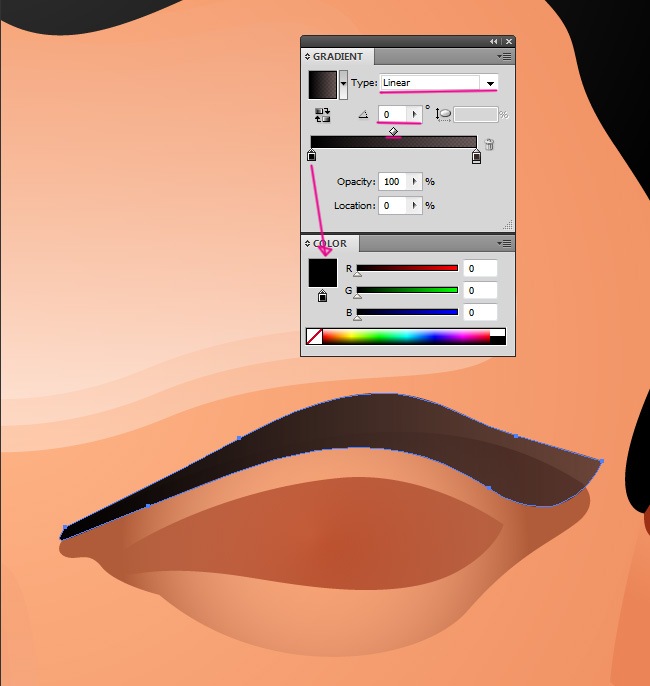

You’re doing great, don’t forget to eat for being entertained with this tutorial.

characterh02

characterh84

characterh85

Copy paste (Ctrl + C, Ctrl + F) the first object that we made of our eye, make sure that it gets in top of the rest.

characterh86

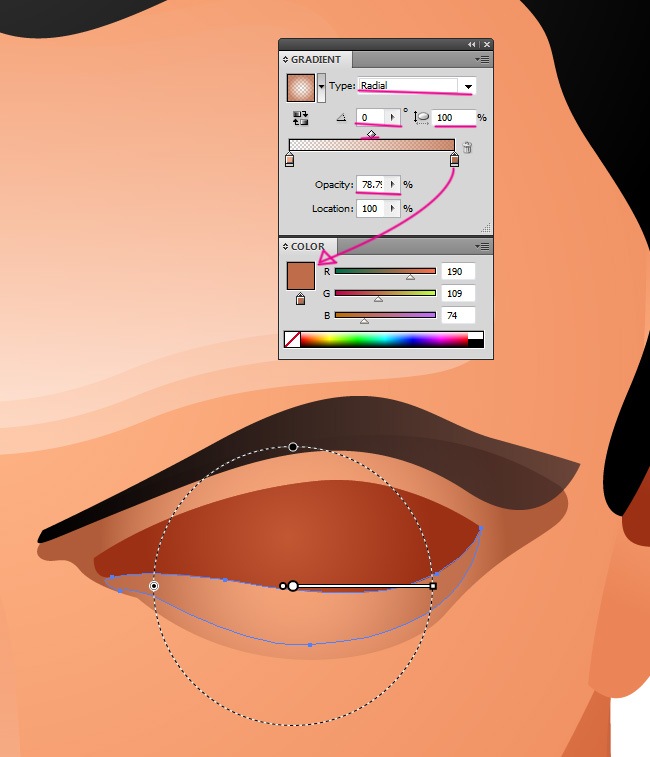

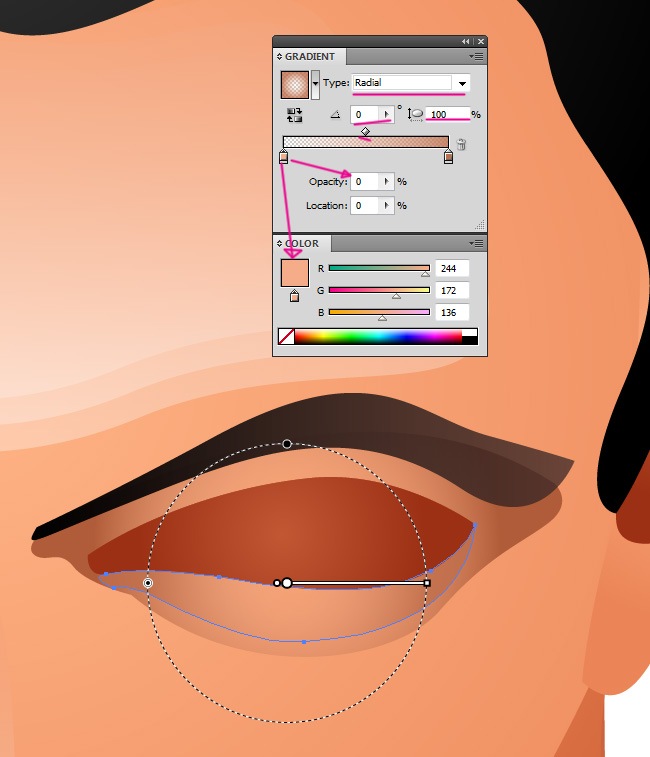

Let’s add a subtle detail at the bottom of the eye.

characterh02

characterh87

characterh88

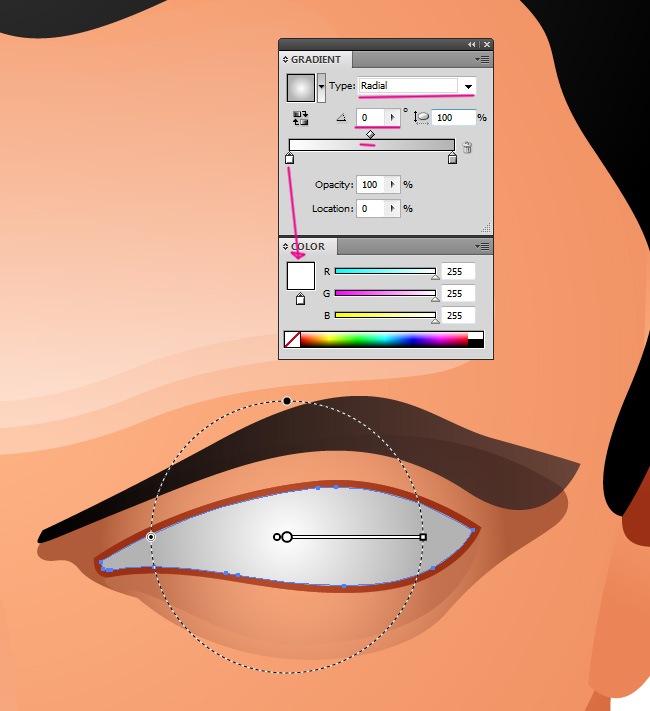

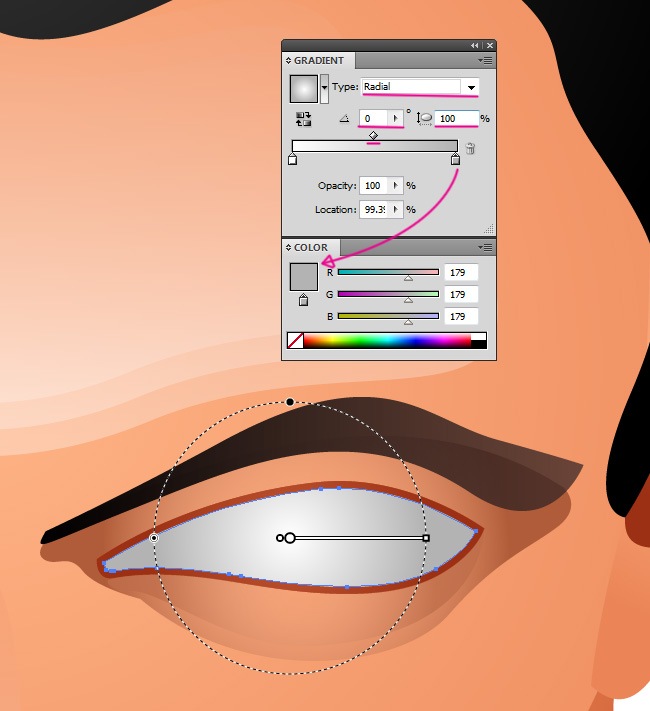

The white part of the eye is easy, it will take you not more than a minute.

characterh02

characterh89

characterh90

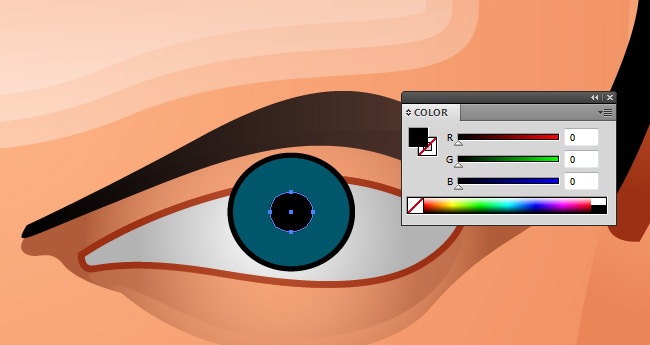

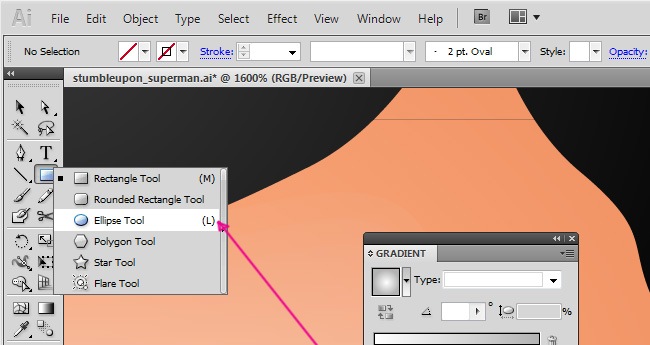

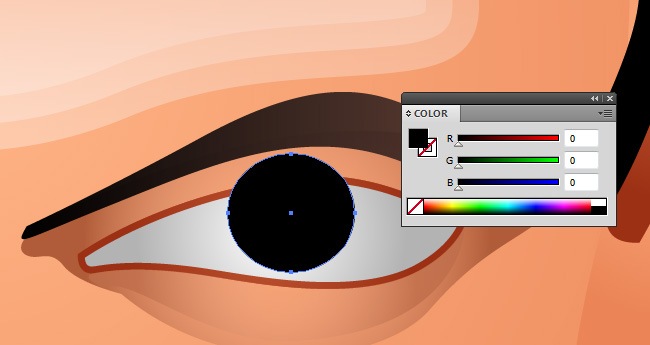

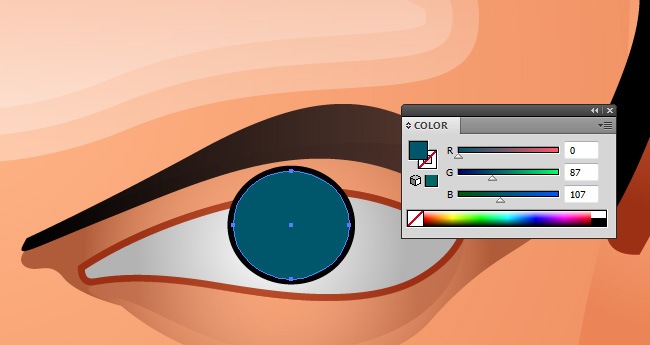

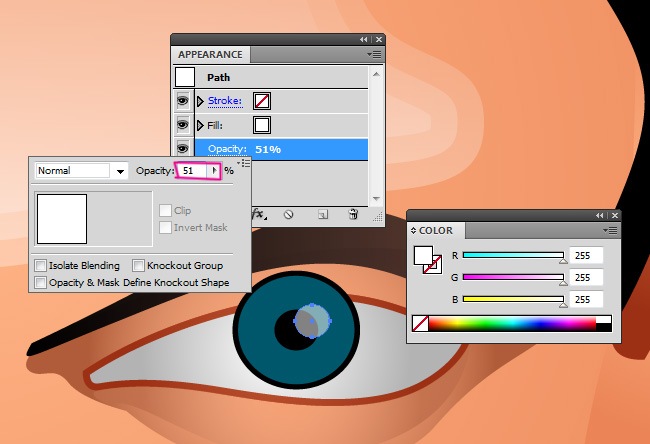

Using the ellipse tool we will create the pupil, just 3 ellipses and you’re almost done with the eye.

characterh91

characterh92

characterh93

characterh94

characterh95

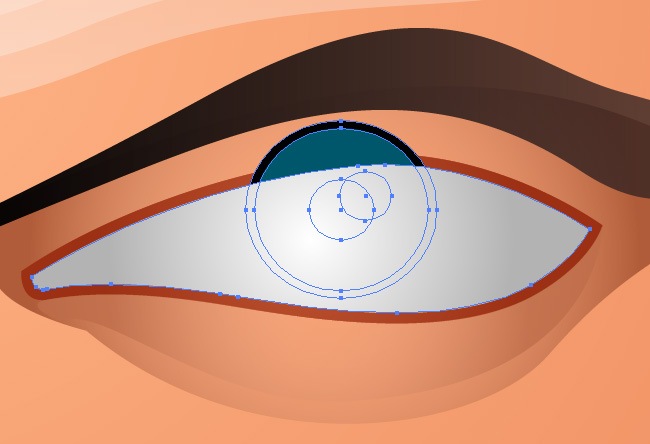

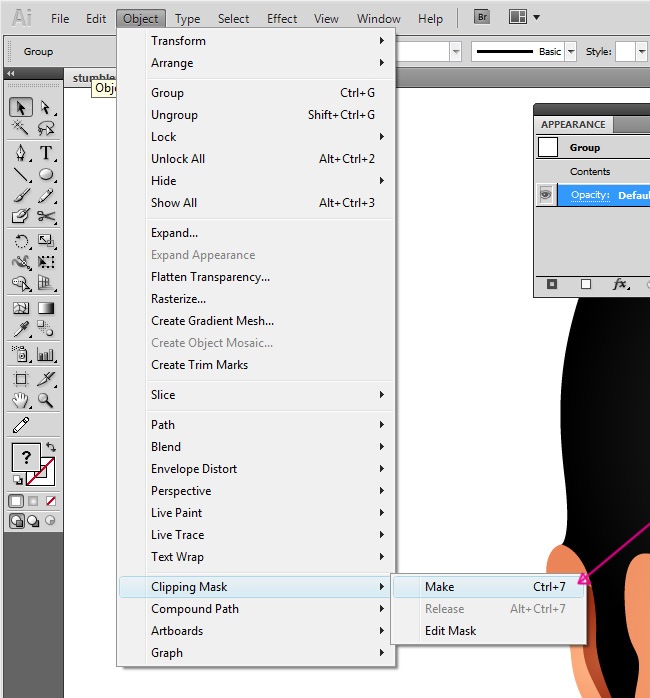

As you can see the pupil is falling out of the eye’s area, to fix this you need to copy paste the white area and paste it on top, then select it along with the pupil and go to Object>Clipping Mask>Make.

characterh96

characterh97

And our eye is complete, now you only need to duplicate it and reflect it to save a lot of time.

characterh98

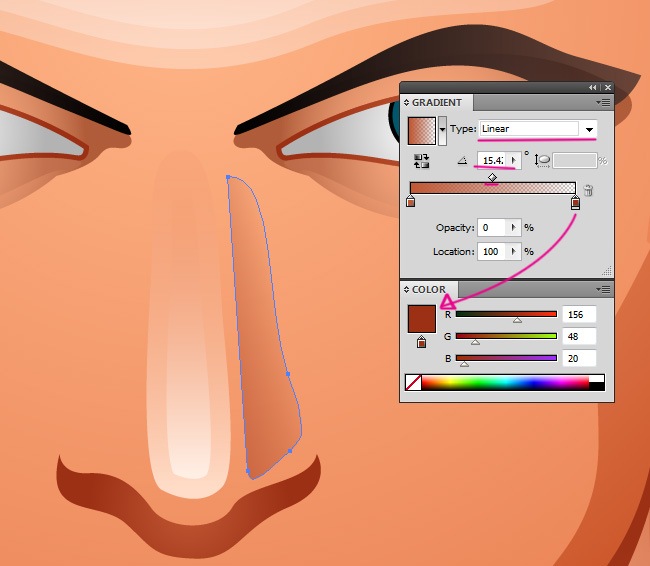

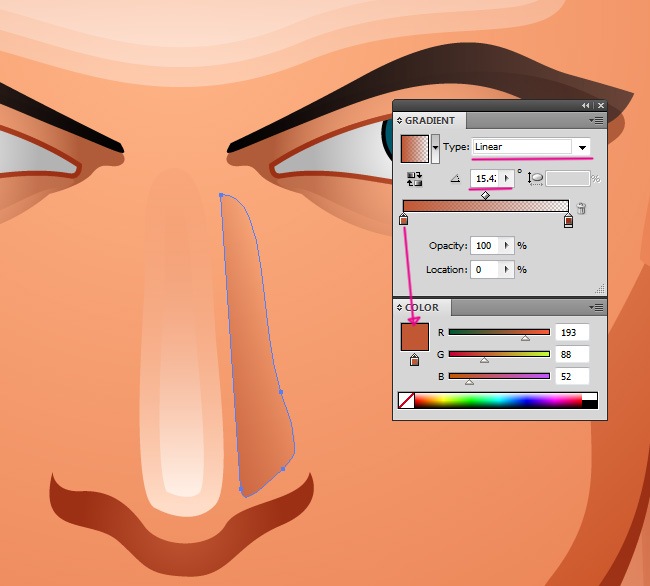

The basic design is ready, now we just need to work on the highlights and shadows, like the next one:

characterh02

characterh99

characterh100

Duplicate the shape but do not place it exactly in front of the original to avoid our character of looking extremely symmetrical.

characterh101

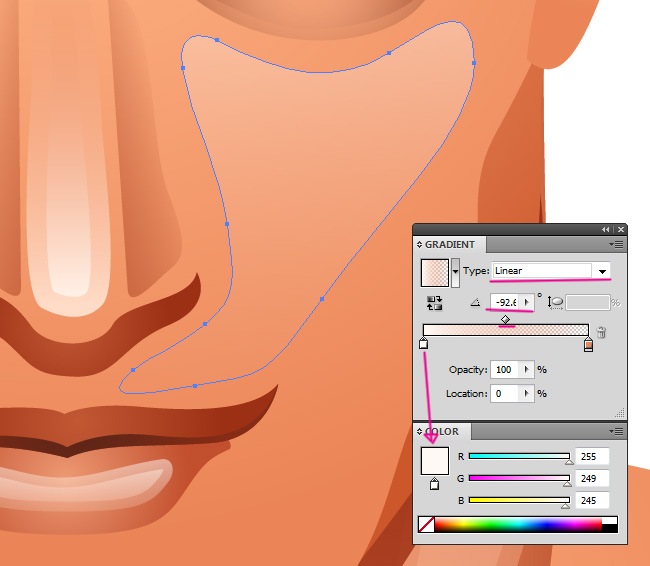

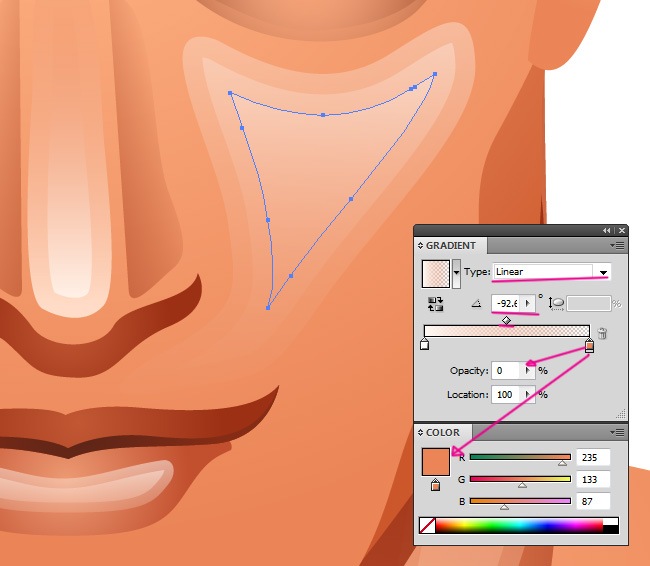

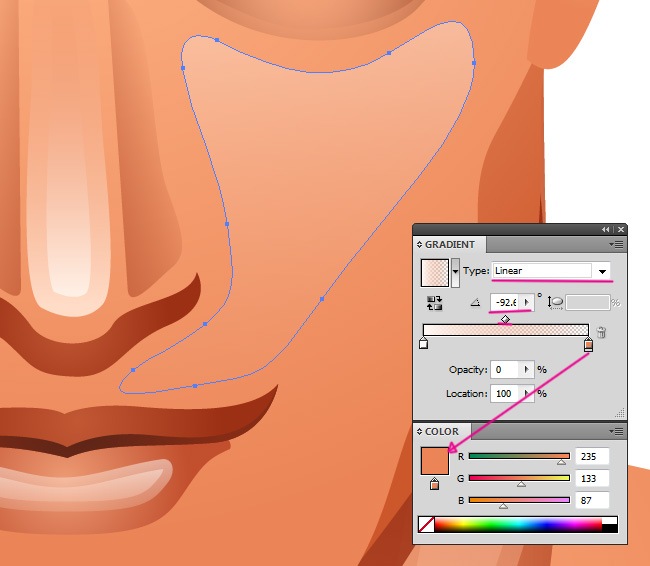

The cheeks require some highlights to provide some texture to our character’s face, so we will repeat the 3 objects formula.

characterh02

characterh102

characterh103

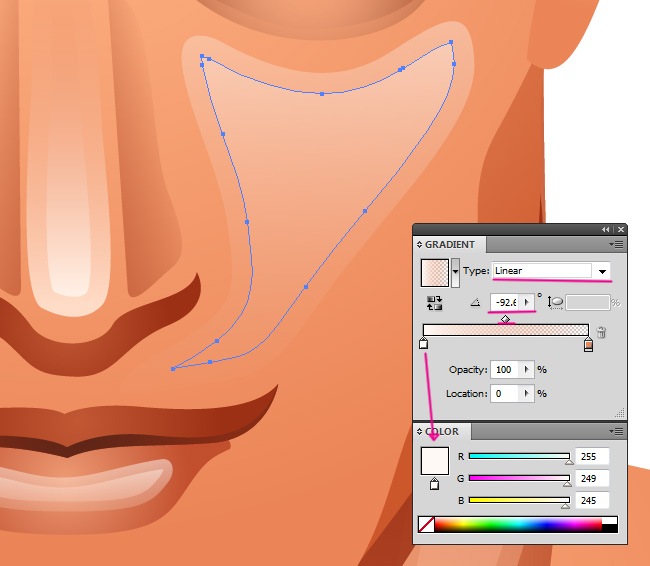

Now the middle shape, you know what to do.

characterh02

characterh104

characterh105

characterh107

Then we select the 3 objects and duplicate them to reflect them and put them in front of the left cheek.

characterh108

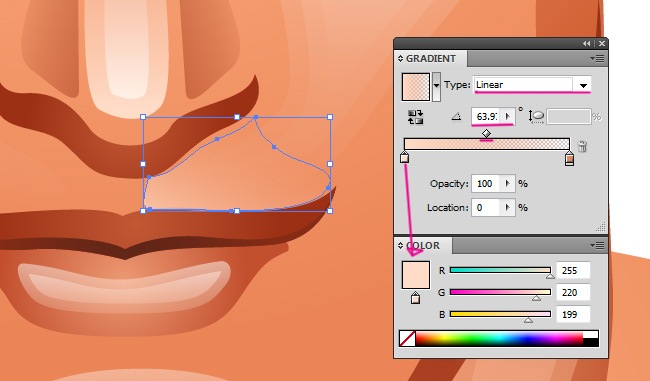

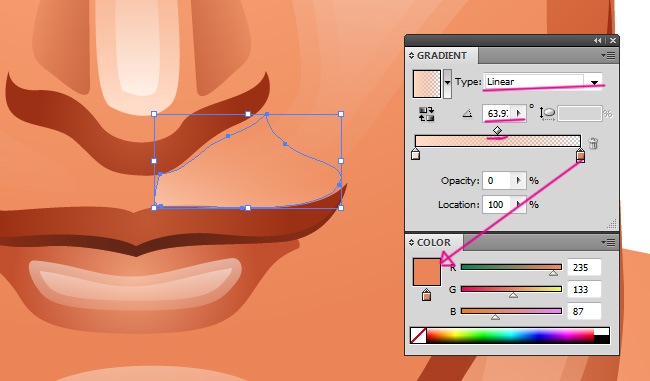

Maybe a little highlight above the mouth will look good.

characterh02

characterh109

characterh110

As usual, just duplicate them and reflect them to save time.

characterh111

We need our stylist to help us beautify our character’s hair, he needs a lot of highlights to gain volume.

characterh02

characterh112

characterh113

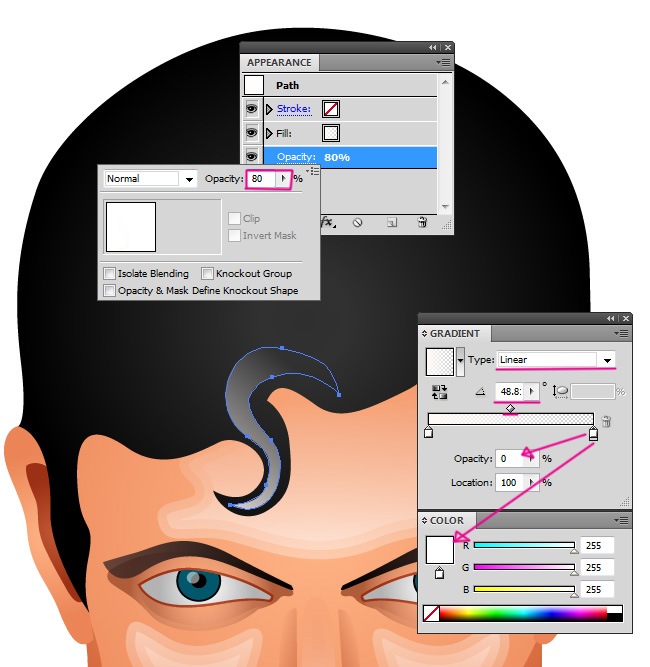

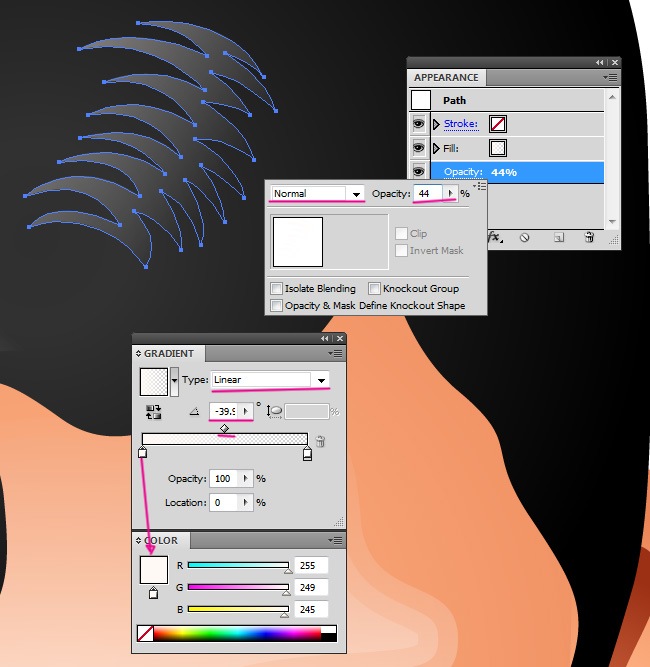

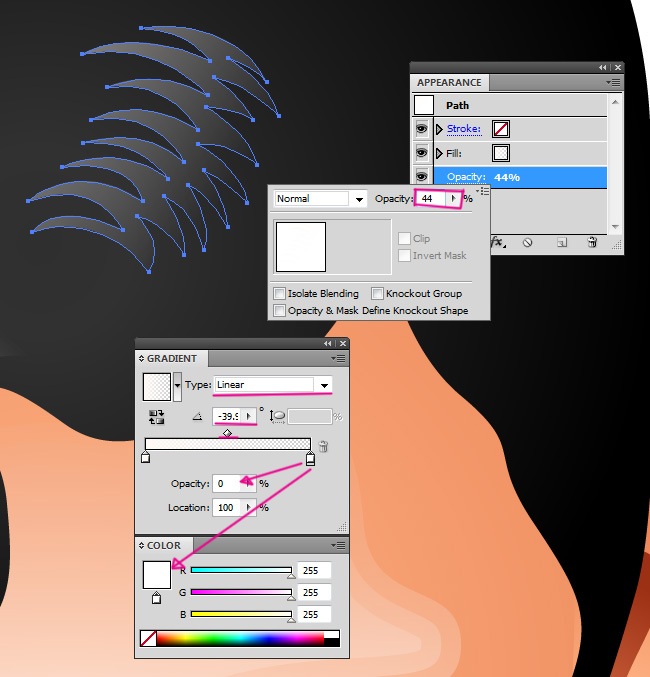

Our stylist is suggesting us to add many highlights and play with the opacity values in the meantime.

characterh02

characterh114

characterh115

You can fly solo on this part, just let your imagination take over and add as many highlights as you want.

characterh116

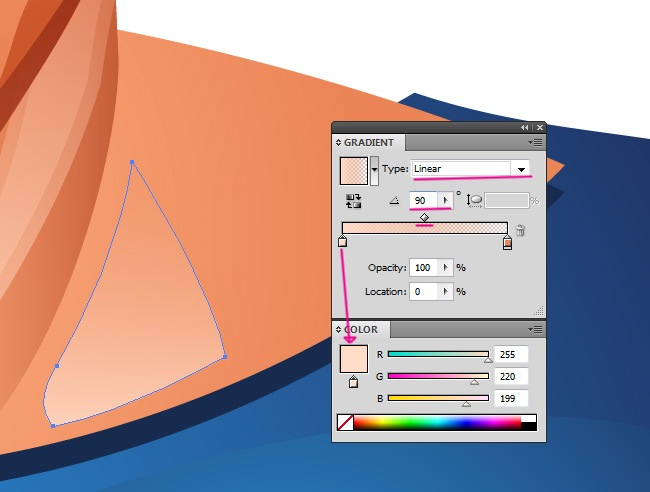

Some highlights at the sides of the neck will be a great idea.

characterh02

characterh117

Duplicate and reflect it and you’re done with that part.

characterh118

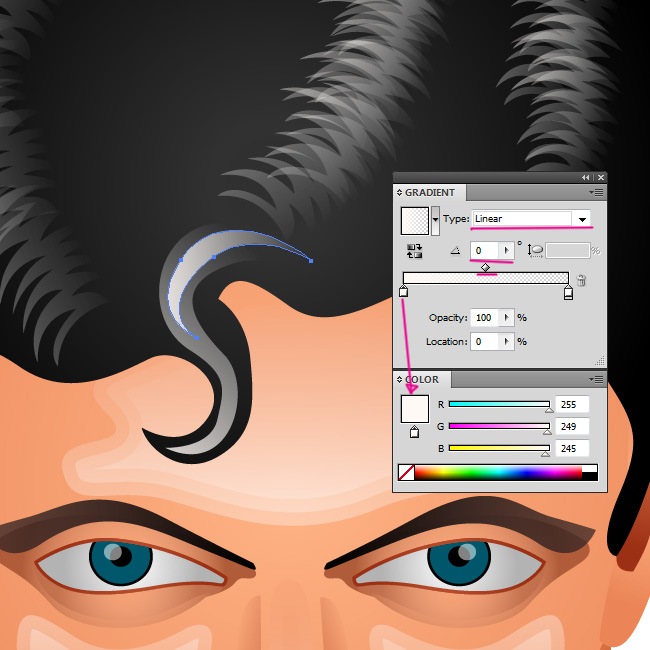

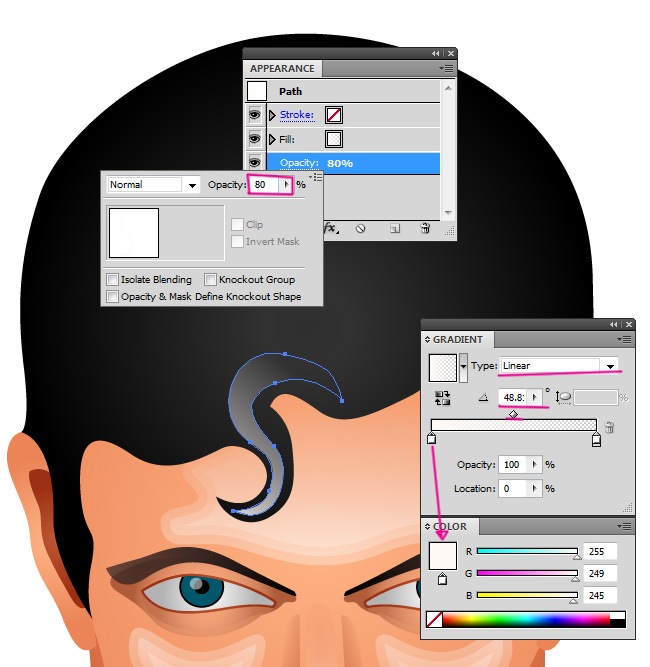

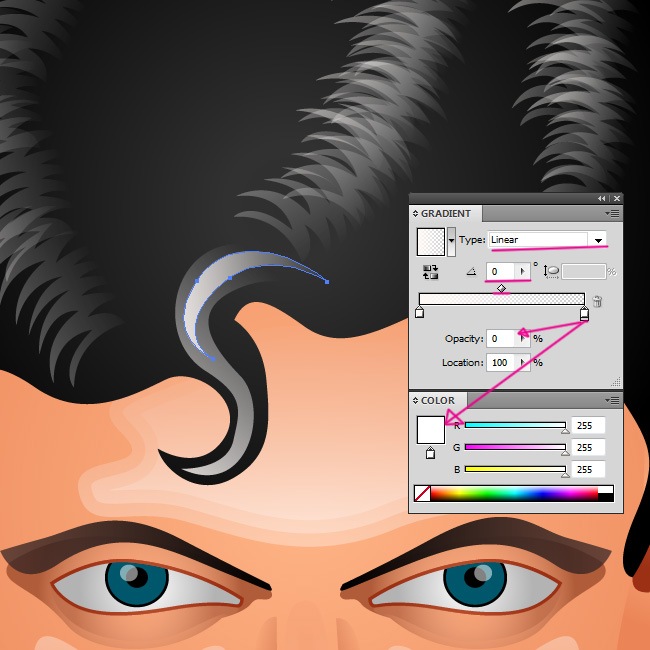

You could add some extra highlights to the hair, let’s see how that looks.

characterh02

characterh119

characterh120

And now repeat the formula across the whole hair, I can assure you that it will look really cool.

characterh121

So far our character is looking really great, we only need to add a few more details and we’re done.

characterh122

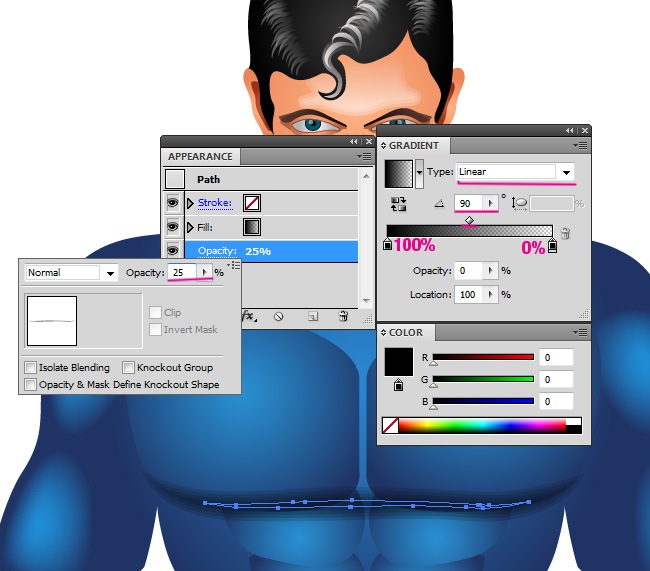

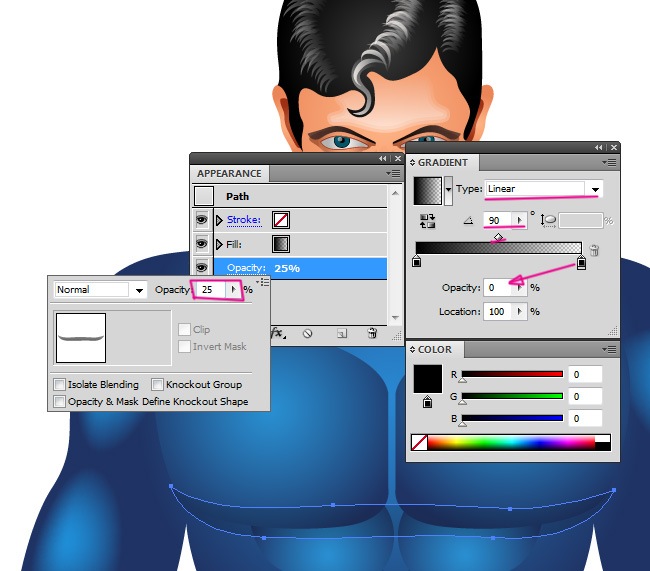

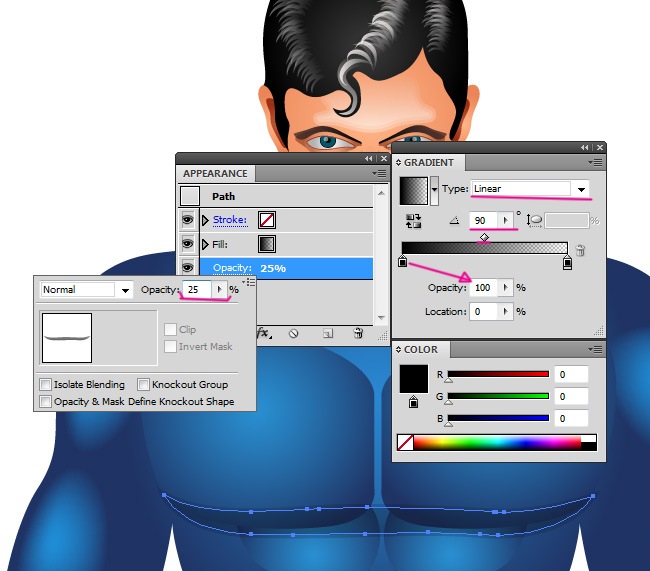

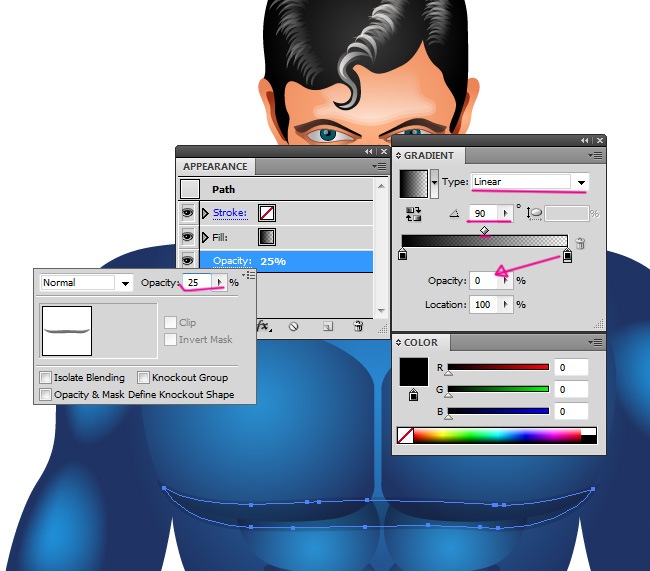

Some shadows need to be added below the chest, because it’s looking a little strange without them. We are about to add a 5 shape shadow to our character’s chest.

characterh02

characterh123

characterh124

characterh02

characterh125

characterh126

characterh02

characterh127

characterh02

characterh128

characterh02

characterh129

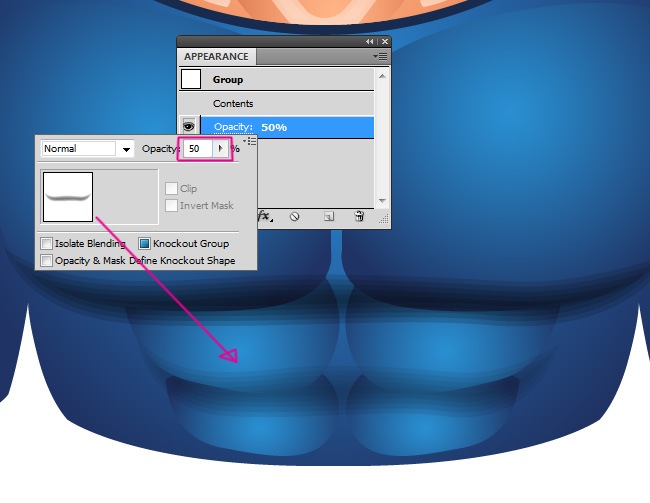

Now something simple, copy paste (Ctrl + C, Ctrl + F) this 5 shape shadow and resize it to fit over the abs, then group the 5 objects by hitting Ctrl + G and reduce the whole group’s opacity to 50 %.

characterh130

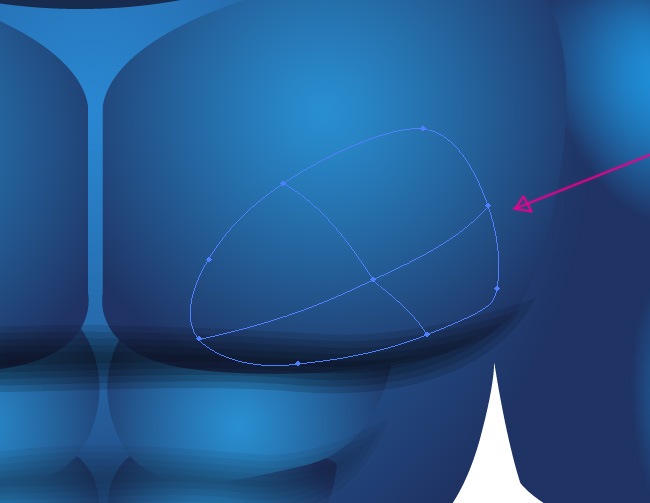

Awesome, we’re just a couple of steps away, draw the following shape in front of the chest and turn it into a mesh, you know how to do it.

characterh02

characterh14

characterh131

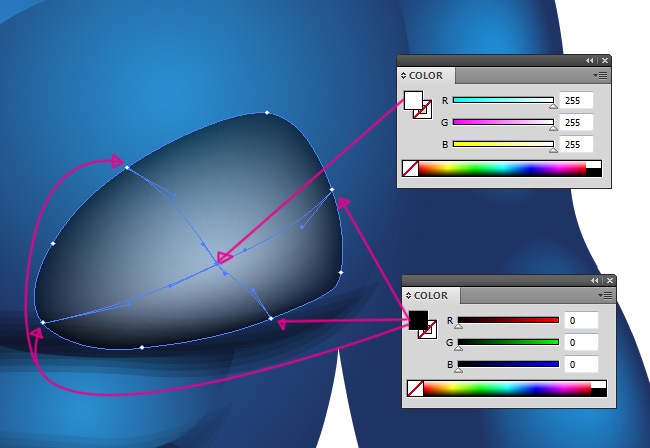

Fill all the mesh with black but the center, which must be filled using white.

characterh132

Finally switch the blending mode to screen and reduce the opacity to 55 %.

characterh133

And you’re done, duplicate the object to place it on the other side of the chest and our character has been completed, just add a subtle shadow to give it some ground and then let’s take a look at it.

characterh134

Having this basic character design you can easily generate awesome designs such as the latest Iconshock set featuring social networks and classic superheroes, we hope that you have enjoyed this tutorial and feel ready to start making your own designs, see you on our next tutorial.

characterh00
